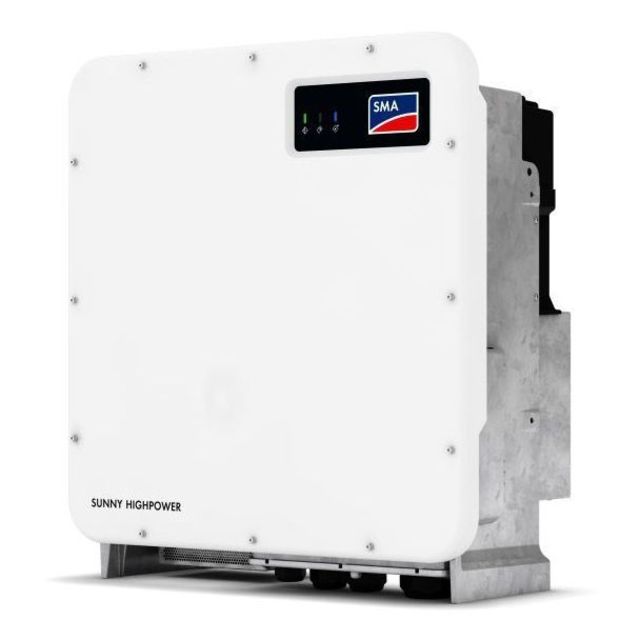

Sunny Highpower PEAK3 125-US-21 125KVA 480VAC String Inverter

SUNNY HIGHPOWER PEAK3 125-US-21 (SHP 125-US-21) 125KVA 480VAC STRING INVERTER

The PEAK3 1,500 VDC inverter offers high power density in a modular architecture that achieves a cost-optimized solution for large-scale PV integrators. With fast, simple installation and commissioning, the Sunny Highpower PEAK3 is accelerating the path to energization. SMA has also brought its field-proven Smart Connected technology to the PEAK3, which simplifies O&M and contributes to lower lifetime service costs. The PEAK3 power plant solution is powered by the ennexOS cross sector energy management platform, 2018 winner of the Intersolar smarter E AWARD.

Technical Specifications:

• Maximum Array Power: 250 kWp
• Maximum System Voltage: 1500 V
• Rated MPP Voltage Range: 705 V – 1450 V
• MPP Operating Voltage Range: 484 V – 1500 V
• Number of MPP Trackers: 12
• Maximum Input Current: 12 × 30 A
• Maximum Short-Circuit Input Current: 12 × 50 A
• Nominal AC Power: 125 kW
• Maximum Apparent Power: 125 kVA
• Output Phases: 3-Phase
• Nominal AC Voltage: 480 V
• CEC Efficiency: 98.5%

PV Array Compatibility

Pair this inverter with our high-performance Solar Panels to ensure optimal string efficiency and output.
