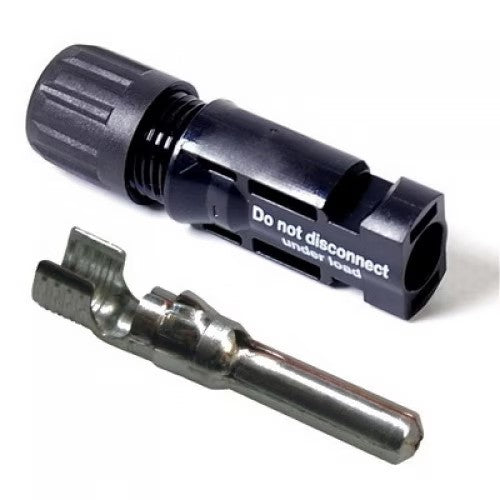

Staubli 18-32.0017P0001-UR Male MC4 Connector w/ Boot

$1.92 USD
$1.92 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Mating Pair Compatibility: Connects directly with female MC4 couplers (18-32.0016P0001-UR) to form weather-tight DC string splices, home-run extenders, and inverter connections.
✔️ Outer Diameter Gland Fit: Sized for standard 10 AWG PV Wire (550-9080), ensuring proper strain relief and an airtight internal rubber gland seal (5.9 mm - 8.8 mm jacket OD).
✔️ UL 6703 Listed: Fully compliant with NEC requirements for 1000V/1500V DC PV field connections with snap-in locking tabs requiring a tool to disconnect.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

    Multi-Contact, MC4 Connector with Boot for 5.5 to 9mm OD #10/12 AWG PV Wire, Male (-), 1500VDC, PV-KST4/6II-UR, 18-32.0017P0001-UR

    Stäubli MC4 Male Solar Connector with Boot for 10/12 AWG PV wire, rated up to 1500 VDC, providing a secure and weather-resistant connection for solar photovoltaic systems.

    • Manufacturer Part #: 18-32.0017P0001-UR
    • Item Weight: 0.05 lb
    • Dimensions (LxWxH): 2.4 x 0.7 x 0.7 inches

    • Resources

      Disclaimer:

      While we strive to keep our item documents up to date, manufacturers may update or revise these documents without prior notice. We recommend referring to the manufacturer’s latest documentation for the most current information.

      As of now, documentation for this product is not available from the manufacturer.
