Enphase SSTART-16-32A-1P-230V Soft starters needed for HVAC

$453.92 USD

$453.92 USD

Sale Sold out

Shipping calculated at checkout.

Features / Description:

On motor start‑up, the soft starter limits the initial “locked‑rotor current,” reducing electrical and mechanical stress compared to a direct line start.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.

Product variants

Secure checkout with

Shipping & Returns Policy

Visit our Shipping Policy and Returns Policy page for further details

View Product Details

Enphase

Description

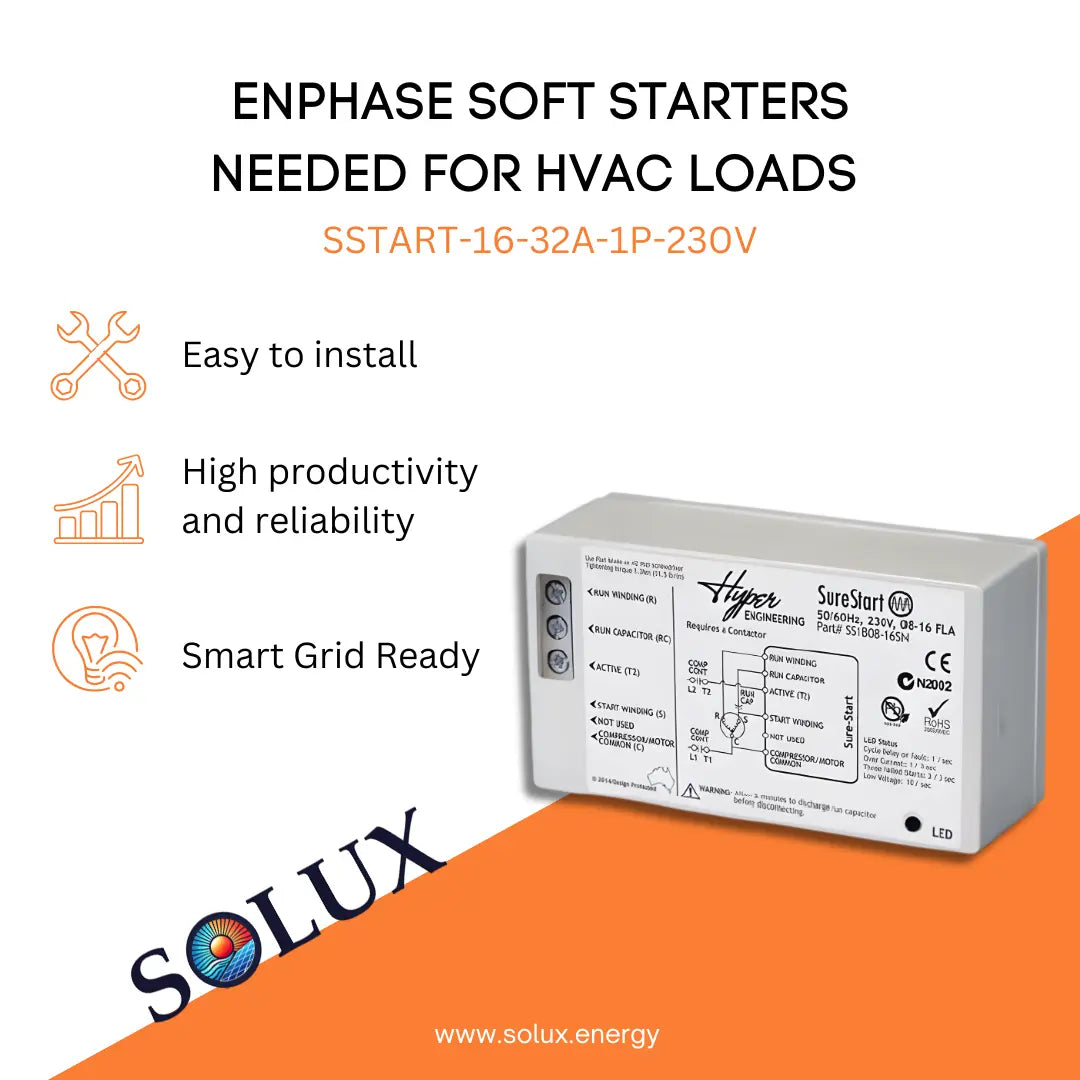

Enphase SSTART-16-32A-1P-230V Soft starters needed for HVAC loads with current rating from 16A to 32A

The Enphase SSTART-16-32A-1P-230V is a single‑phase soft starter designed to reduce electrical stress when starting motors that draw high inrush current. Instead of a sudden full‑power start, it brings the motor up to speed more gently. Soft starters help reduce inrush current, electrical noise, light flicker, and mechanical stress on compressor motors — especially in air conditioners or pumps.

Technical Specifications:
- Product Type: Single‑phase soft starter
- Phase: 1‑phase
- Shipping Weight: 1.5 lb
- Shipping Dimensions: 5.25 x 3 x 2 in
- Voltage: 230 V AC (50/60 Hz)
- Current Range: 16 A to 32 A load
Downloads

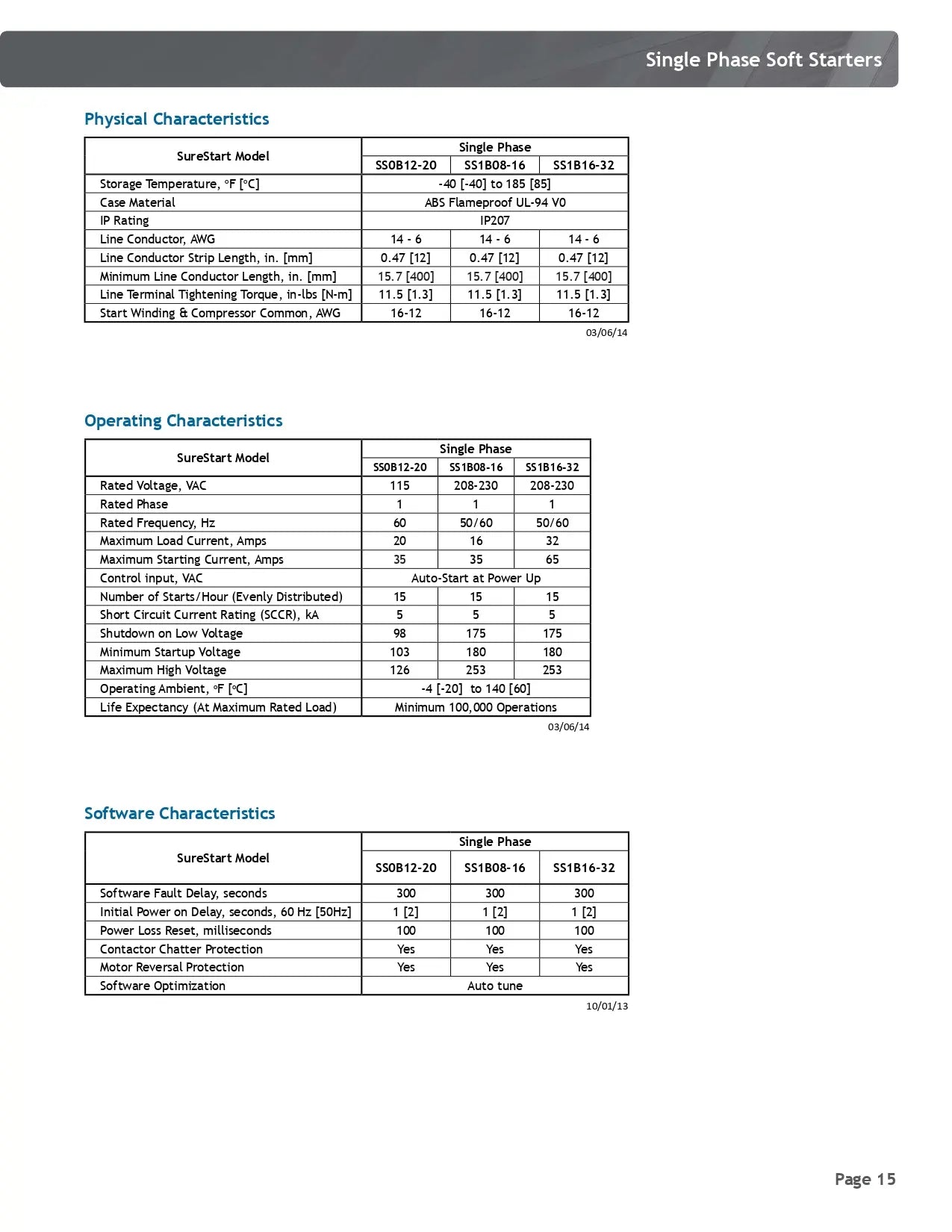

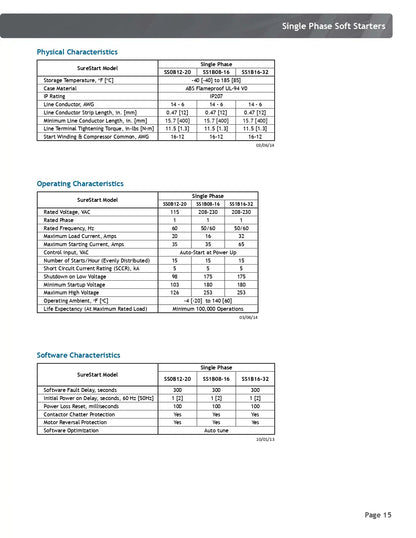

Datasheet
✔️ Datasheet

Quick Installation Guide

No Quick Installation guide available. Email support@solux.energy for file request.

Warranty

No Warranty file resource available. Email support@solux.energy for file request.

Download Spec Sheet

Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
