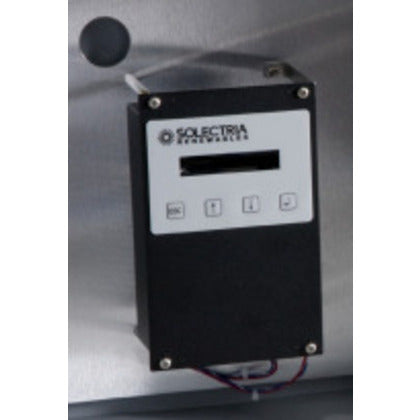

Yaskawa Solectria SRV-LCD Solar Monitoring Gateway

SRV-LCD Solectria Solar Monitoring Gateway

Yaskawa - Solectria Solar’s SolrenView Data Logger offers customers a solution for system data collection and is fully compatible with PVI 3800-7600TL & PVI 14-36TL. This solution provides performance data that can be monitored online when paired with the SolrenView Inverter Direct Monitoring package. The Data Logger is available as a Residential or Commercial solution. The Residential solution has the option of shipping pre-mounted in a weather tight enclosure allowing for installation flexibility and accessibility as a part of the PV system, while this is a standard feature of the Commercial Data Logger. The Commercial solution provides additional design flexibility as it is powered by the inverter using the supplied Modbus and power cable, eliminating the need to supply power to the logger in the field. Both SolrenView Data Logger solutions use the RS-485 Modbus protocol to communicate with devices connected in a daisy chain sequence. They allow up to 32 devices to be connected per data logger
in each daisy chain.

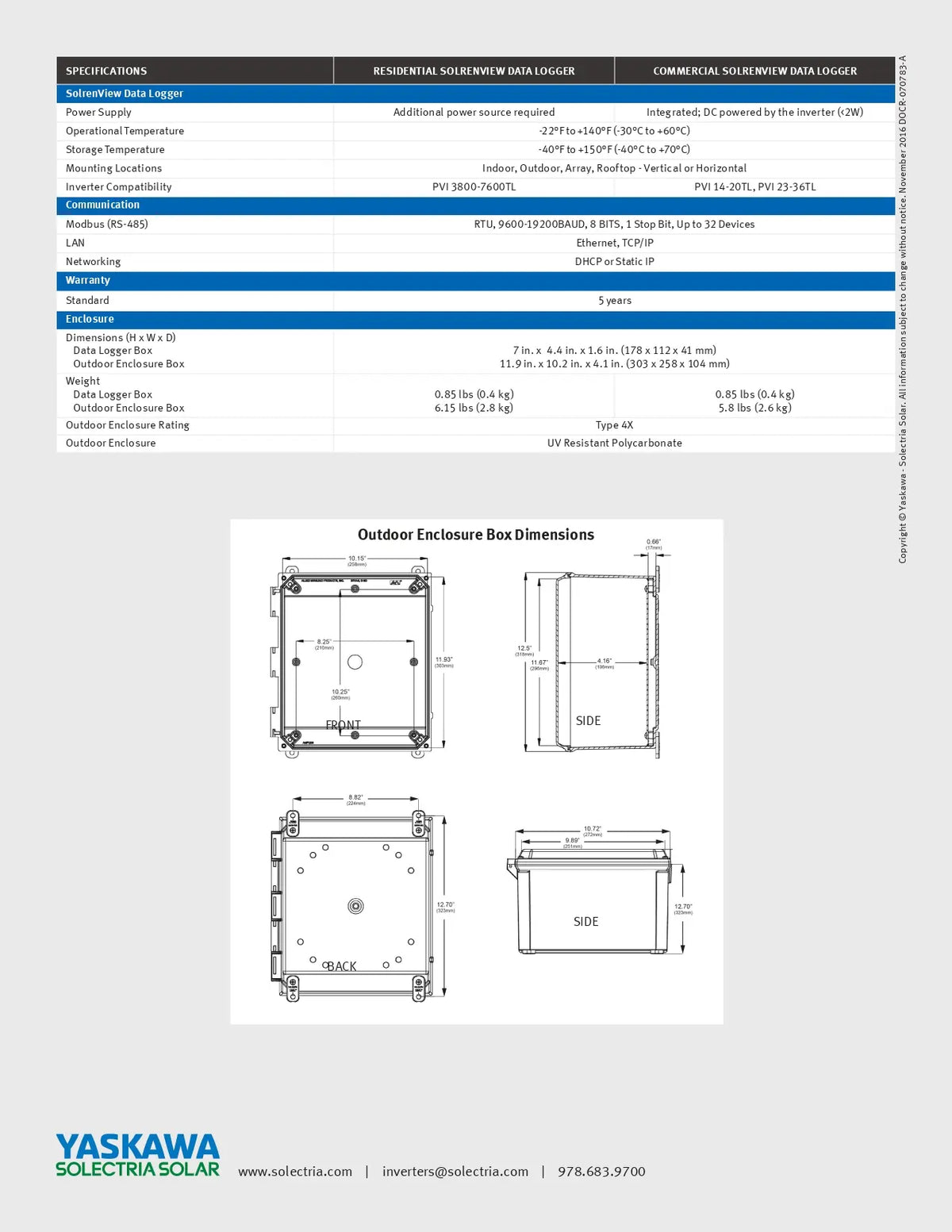

Specifications:

• Manufacturer Part Number: SRV-LCD
• Product Category: Solar Monitoring Gateway with LCD Screen
• Product Type: Utility-scale string inverter

Mechanical:

• Power Supply: Additional power source required
• Operational Temperature: -22°F to +140°F (-30°C to +60°C)
• Storage Temperature: -40°F to +150°F (-40°C to +70°C)
• Mounting Locations: Indoor, Outdoor, Array, Rooftop - Vertical or Horizontal
• Modbus (RS-485): RTU, 9600-19200BAUD, 8 BITS, 1 Stop Bit, Up to 32 Devices
• LAN: Ethernet, TCP/IP
• Networking: DHCP or Static IP
• Dimensions (H x W x D): Data Logger Box: 7 in. x 4.4 in. x 1.6 in. (178 x 112 x 41 mm), Outdoor Enclosure Box: 11.9 in. x 10.2 in. x 4.1 in. (303 x 258 x 104 mm)

• Weight: Data Logger Box: 0.85 lb (0.4 kg), Outdoor Enclosure Box: 6.15 lbs (2.8 kg)

• Warranty: Standard 5 years
