Description
SPN-1-01400

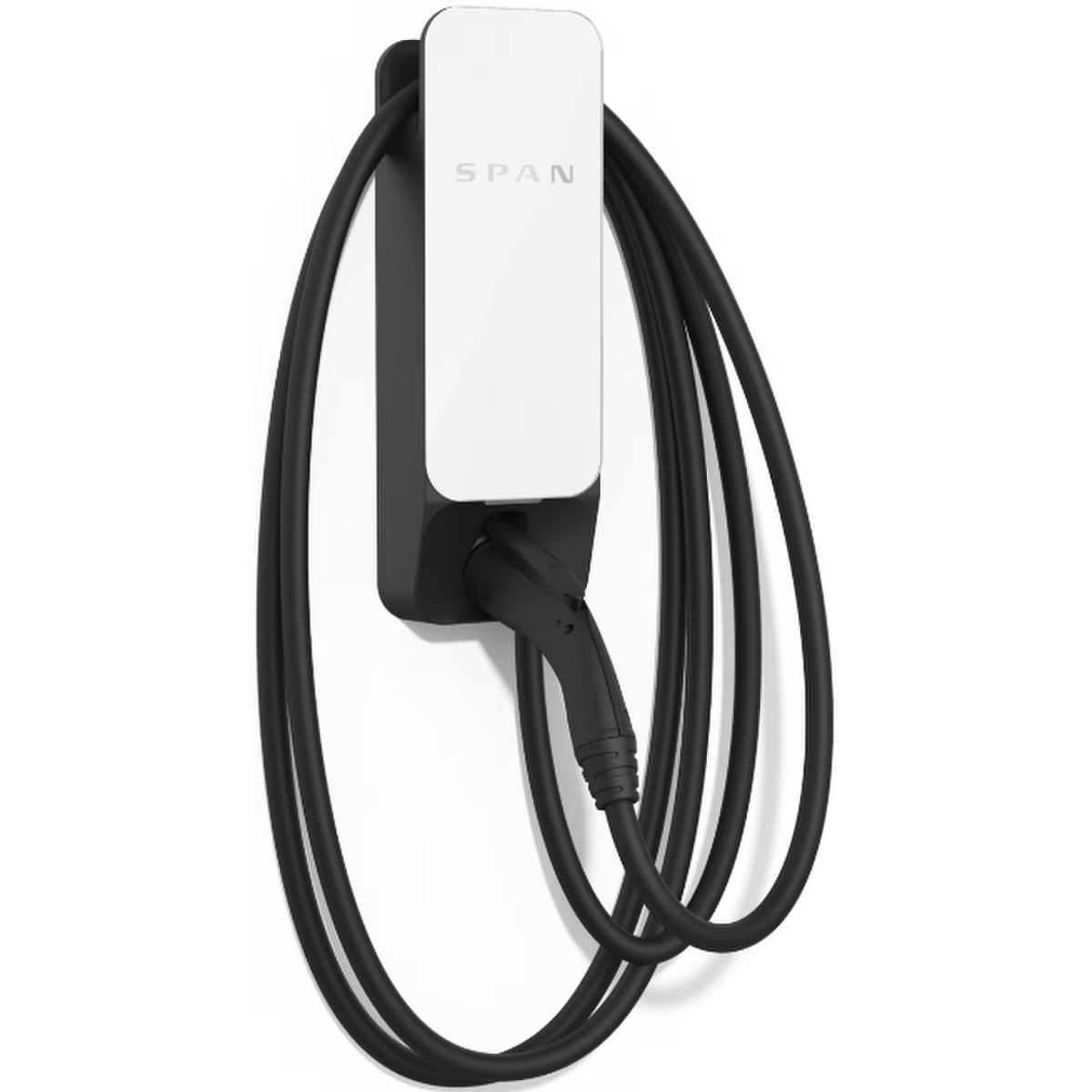

Span Drive - EV Charger Level 2, 11.52 kW (48A) max power, includes charging cable, requires Span panel.

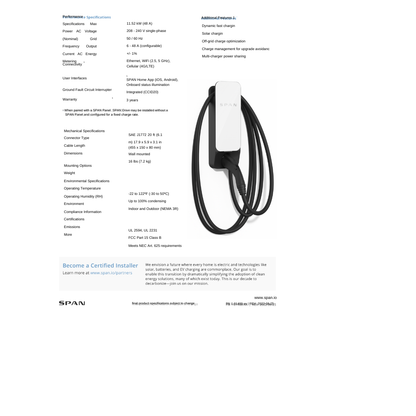

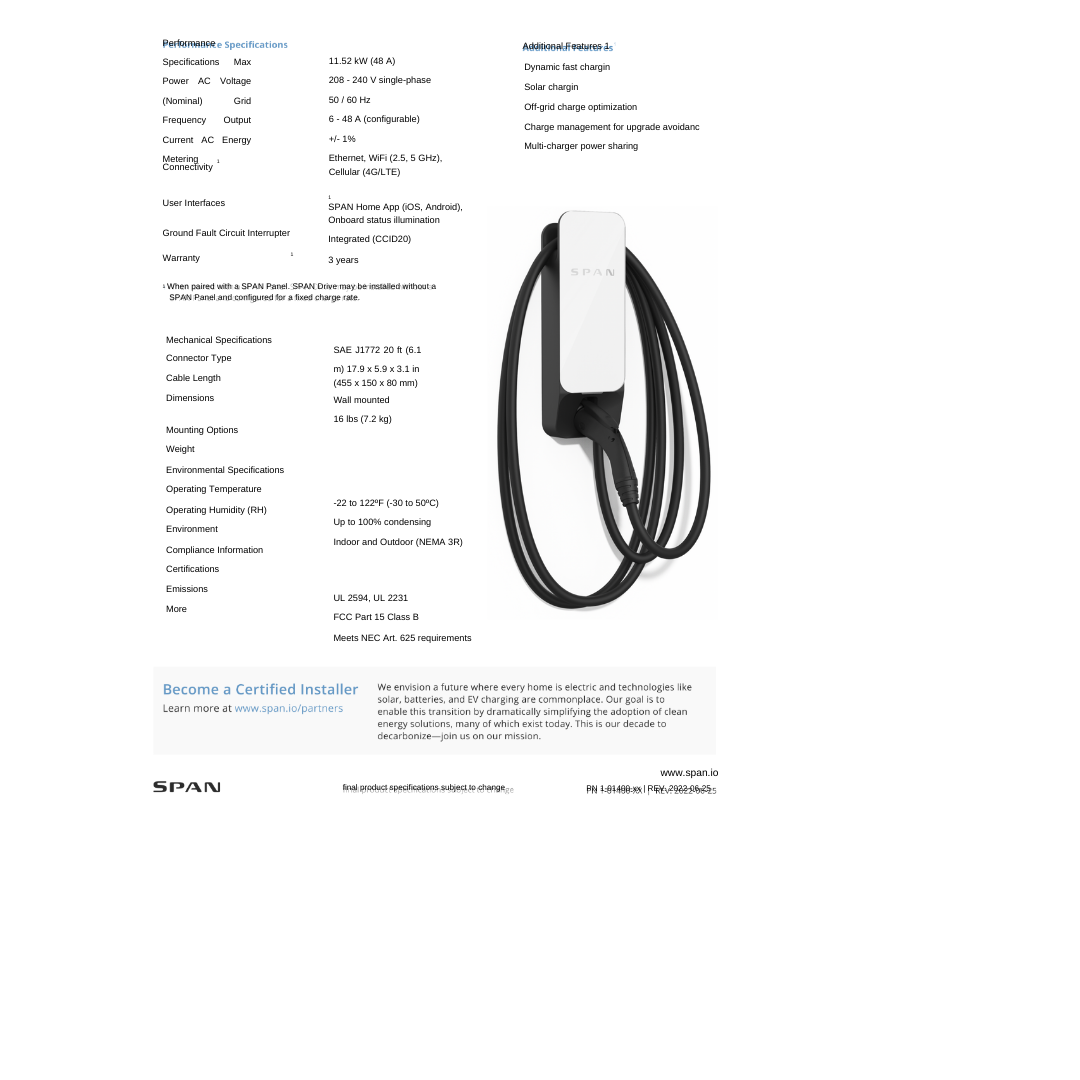

Technical Specifications
- Shipping Weight: 16 lb
- Shipping Dimensions: 17.9 x 5.9 x 3.1 in
- Pallet Qty: 12
- Max Power: 11.52 kW (48 A)
- AC Voltage (Nominal): 208 - 240 V single-phase
- Grid Frequency: A50 / 60 Hz
- Output Current: 6 - 48 A (configurable)
- AC Energy Metering: +/- 1%
- Connectivity : Ethernet, WiFi (2.5, 5 GHz), Cellular (4G/LTE)
- User Interfaces: SPAN Home App (iOS, Android),Onboard status illumination
- Connector Type: SAE J1772
- Cable Length: 20 ft (6.1 m)
-
