APsystems Soluna 5kWh Energy Storage

APsystems Soluna 5kWh Energy Storage: The Smart AC-Coupling Solution

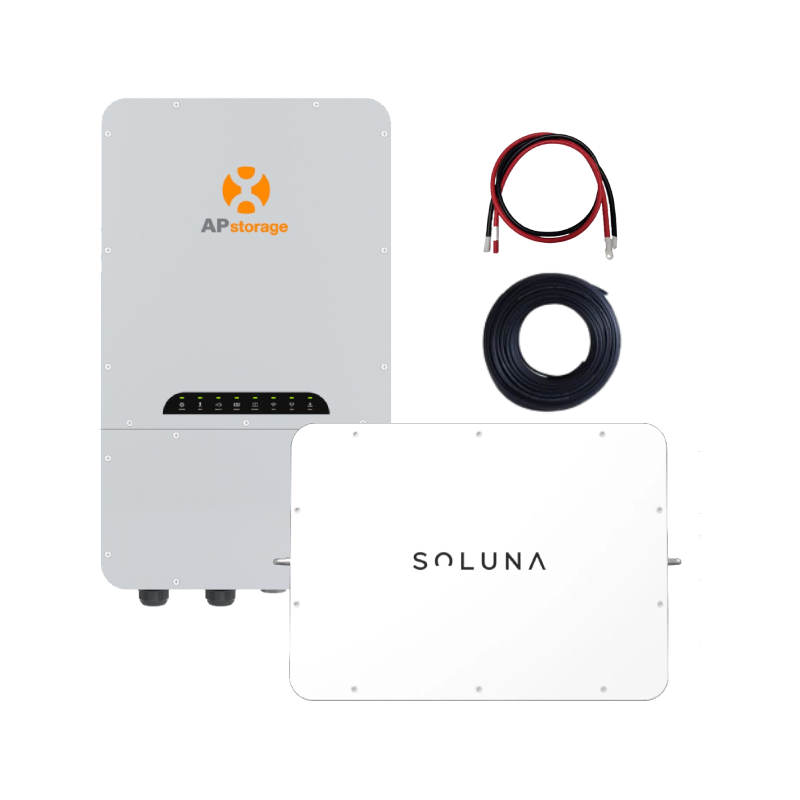

Includes wall-mounting bracket and communication cables. Positive and Negative power cables not included

The APSmart Soluna 5kWh Solar Battery Pack is the definitive energy storage upgrade for owners of APsystems DS3, DS3D, or YC600 microinverter systems. By integrating the high-performance Soluna EOS 5K battery with the APsystems ELS-5K AC-coupled charger, you can transform your existing PV array into a smart self-consumption and blackout-protection powerhouse.

Designed for single-phase residential installations, this 5kWh pack maximizes your energy independence by storing surplus production for night use or peak-shaving, significantly lowering your Total Cost of Ownership (TCO).

Why the APsystems Soluna Pack is a Best-Seller:

• Intelligent Energy Management: Use the EMA App to toggle between Self-Consumption, Back-up, and Peak-Valley modes, ensuring your home is always powered by the most cost-effective source.
• Ultra-Safe LiFePO4 Technology: Powered by Lithium Iron Phosphate (LFP) cells, the safest chemistry on the market, delivering 6,000 charge cycles and a 15-year service life.
• 7.5kVA Peak Backup Power: The integrated ELS-5K charger provides a massive 7500VA surge capacity, allowing you to start high-draw appliances like pumps or refrigerators during grid outages.
• Seamless Monitoring: Track your battery's State of Charge (SOC), energy flow, and household consumption in real-time through the APsystems EMA portal.
• Modular Scalability: Need more power? Easily expand your storage capacity by paralleling up to 12 Soluna units for a total of 60kWh of backup energy.

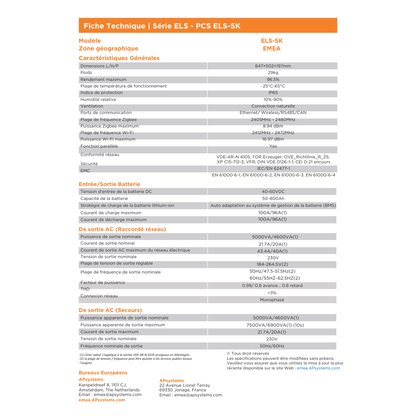

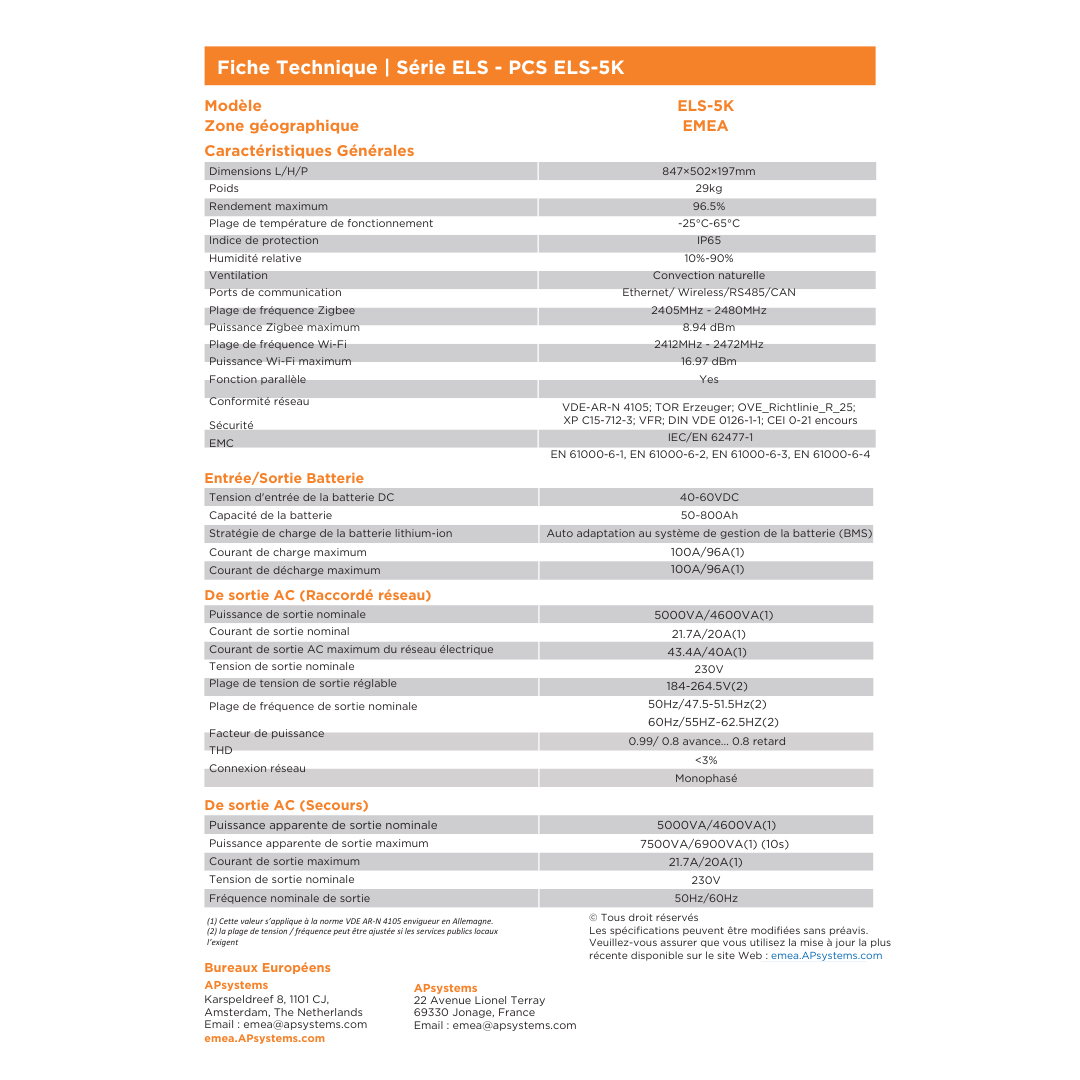

Technical Specifications:

• Dimension APstorage: 847×502×197mm
• Weight: 60 KG
• Maximum yield: 96.5%
• Rated output power: 5000VA/4600VA
• Network connection: Monophase
• Operating Temperature Range: -25°C to 65°C
• Protection Rating: IP65
• Relative Humidity: 10% – 90%
• Cooling: Natural convection
• Communication Ports: Ethernet / Wireless / RS485 / CAN
• Zigbee Frequency Range: 2405 MHz – 2480 MHz
• Zigbee Max Power: 8.94 dBm
• Wi-Fi Frequency Range: 2412 MHz – 2472 MHz
• Wi-Fi Max Power: 16.97 dBm
• Parallel Function: Yes
