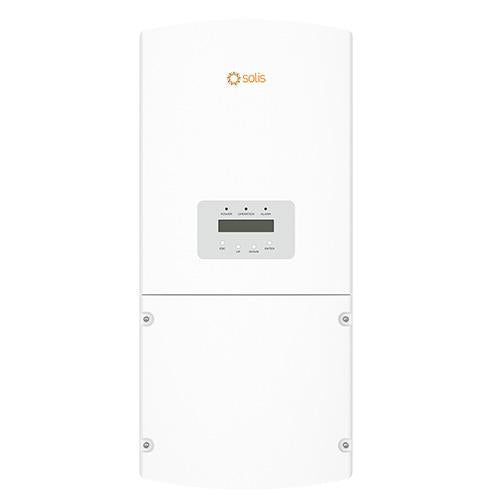

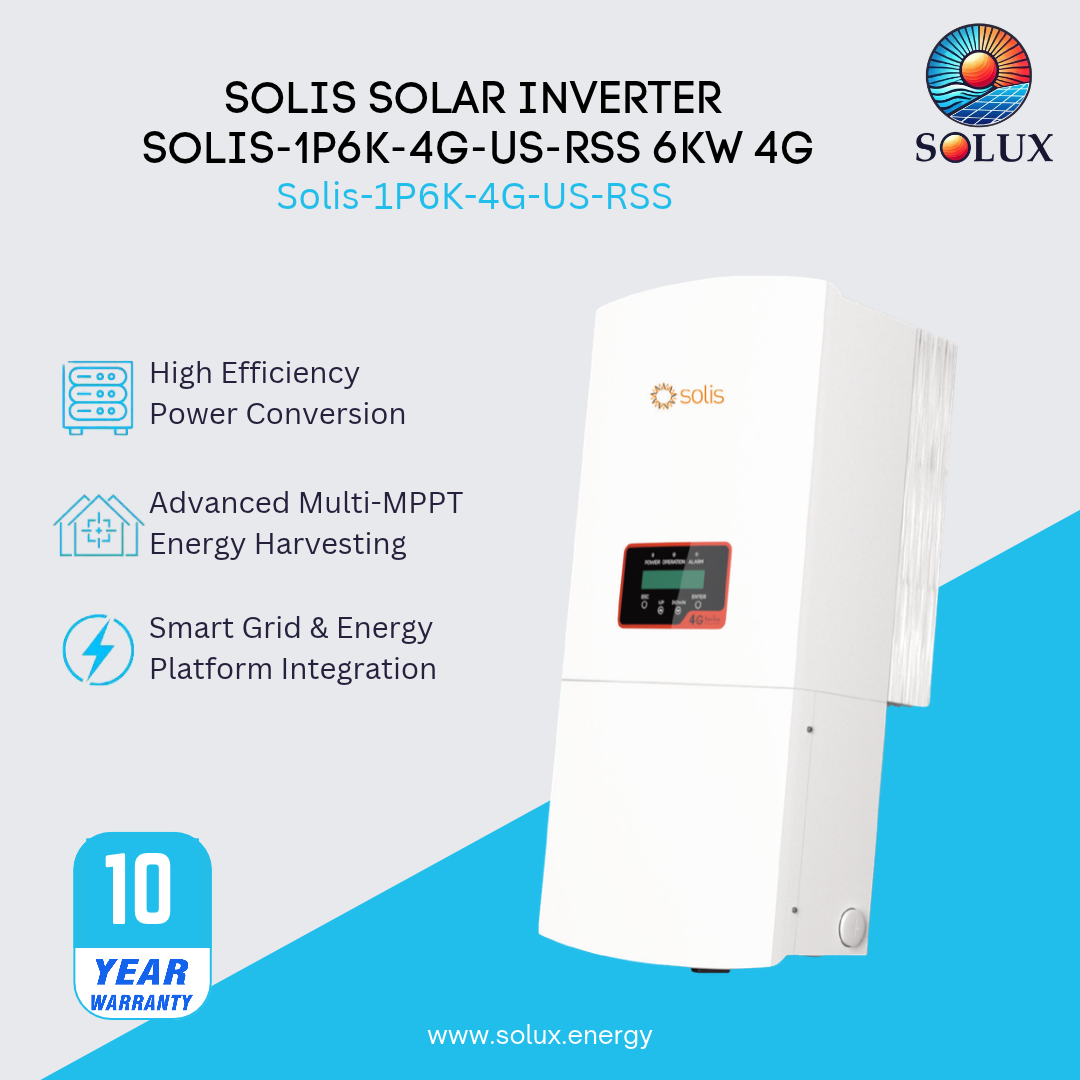

Solis Solar Inverter Solis-1P6K-4G-US-RSS 6kw 4G Single phase Three MPPT

Solis Solar Inverter Solis-1P6K-4G-US-RSS 6kw 4G Single phase Three MPPT

The Solis-1P6K-4G-US-RSS is a 6 kW single-phase grid-tied solar string inverter manufactured by Solis. It converts DC electricity generated by solar panels into AC electricity for household or building use and export to the utility grid. It features three maximum power point trackers (MPPTs) for optimizing solar energy production, an integrated Tigo module-level rapid shutdown transmitter for enhanced safety, and a maximum efficiency of 97.8%. It also supports optional cellular and Wi-Fi connectivity for system monitoring and includes arc-fault circuit interrupter (AFCI) protection.

Benefits and Applications:

Experience the benefits of clean, renewable energy with the Solis-1P7K-4G-US-RSS inverter. It not only helps reduce your electricity bills but also contributes to a greener environment. Suitable for both residential and commercial applications, it's a versatile choice for powering your solar energy system.

Technology and Overview:

The Solis-1P7K-4G-US-RSS inverter utilizes advanced technology to efficiently convert solar energy into usable electricity. With 3 Maximum Power Point Trackers (MPPT), it optimizes the energy harvest from your solar panels. The built-in 4G connectivity allows you to monitor your system's performance remotely.

Installation and Compatibility:

Installation of this inverter is straightforward, and it's compatible with a wide range of solar panel configurations. Whether you have a residential or commercial solar setup, the Solis inverter is designed to work seamlessly with your system, providing you with reliable power conversion.

Specifications

• Manufacturer: Solis
• Manufacturer Part Number: Solis-1P6K-4G-US-RSS
• Max. Input Voltage: 600 V
• Rated Voltage: 330 V
• Start-up Voltage: 120 V
• MPPT Voltage Range: 100 - 500 V
• Max. Input Current: 10 A / 10 A / 10 A
• Max. Short Circuit Current: 15.6 A / 15.6 A / 15.6 A
• MPPTs / Strings: 3 / 3
• Topology: Transformerless
• Nighttime Consumption: < 1 W
• Cooling: Natural Convection
• Relative humidity: 0-100%
• Operating ambient temperature range: -13°F to 140°F (-25°C to 60°C)
• Storage environment: -13°F to 176°F (-25°C to 80°C)
• Ingress protection: TYPE 4X
• Max. operation altitude: 13,120 ft (4000 m)
• Dimensions (W × H × D):  13.1*28.8*9.8 in (333*732*249 mm)
• Weight: 45.2 lb (20.5 kgs)
• Manufacturer Warranty: 10 Years
