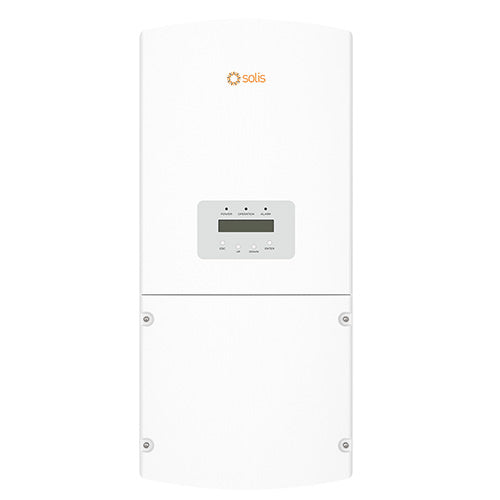

Solis Solar Inverter 6kw 4G Single phase Three MPPT. US Version with APS transmitter with 10 years warranty (S)

Solis Solar Inverter 6kw 4G Single phase Three MPPT. US Version with APS transmitter with 10 years warranty (S)

The Solis-1P6K-4G-US-APST is a 6 kW single-phase, grid-tied solar string inverter designed to convert DC electricity generated by solar panels into AC electricity for residential and small commercial solar power systems. It features three Maximum Power Point Tracking (MPPT) channels to optimize energy harvesting from solar panels across different roof orientations. The inverter delivers a maximum efficiency of 97.8% and includes an integrated APS module-level rapid shutdown transmitter (APST), Arc Fault Circuit Interrupter (AFCI) protection, and support for module-level monitoring. It also supports RS485 communication and optional Wi-Fi or cellular connectivity for remote system monitoring. With a maximum DC input voltage of 600 V, a durable Type 4X enclosure, and a standard 10-year warranty with extension options, this inverter provides efficient energy conversion and reliable system protection.

Key Specifications:

• Manufacturer: Solis
• Model: Solis-1P6K-4G-US-APST
• Max. input voltage: 600 V
• Rated voltage: 330 V
• Start-up voltage: 120 V
• MPPT voltage range: 100 - 500 V
• Max. input current: 14 A / 14 A / 14 A
• Max. short circuit current: 22 A / 22 A / 22 A / 22 A

• Rated output power: 6 kW
• Max. apparent output power: 6 kVA

• Max. output power: 6 kW
• Dimensions (W*H*D): 13.9*31.9*6.5 in (353*810*165 mm)

• Weight: 33.1 lb (15 kgs)

• Manufacturer Warranty: 10 Years
