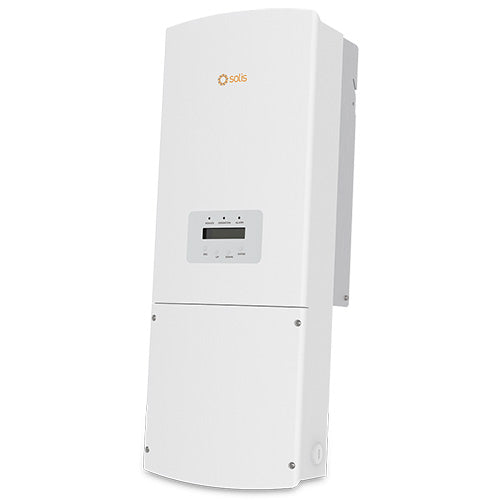

Solis Solar Inverter 5kw 4G Single phase Dual MPPT. US Version with APS transmitter with 10 years warranty (NS)

Solis Solar Inverter 5kw 4G Single phase Dual MPPT. US Version with APS transmitter with 10 years warranty (NS)

The Solis-1P5K-4G-US-APST is a 5 kW single-phase, grid-tied solar string inverter designed to convert DC electricity generated by solar panels into AC electricity for residential and small commercial solar power systems. It features dual Maximum Power Point Tracking (MPPT) technology to optimize solar energy harvesting across different panel configurations, with a maximum conversion efficiency of 97.7%. The inverter includes an integrated APS module-level rapid shutdown transmitter for enhanced system safety, Arc Fault Circuit Interrupter (AFCI) protection to help reduce fire risks, and support for module-level monitoring. It also supports optional Wi-Fi and cellular communication for remote system monitoring and features a durable Type 4X enclosure for reliable outdoor installation. The product comes with a standard 10-year warranty, with extension options available.

Key Specifications:

• Manufacturer: Solis
• Model: Solis-1P5K-4G-US-APST
• Max. input voltage: 600 V
• Rated voltage: 330 V
• Start-up voltage: 120 V
• MPPT voltage range: 100 - 500 V
• Max. input current: 14 A / 14 A / 14 A / 14 A
• Max. short circuit current: 22 A / 22 A / 22 A / 22 A

• Rated output power: 5 kW
• Max. apparent output power: 5 kVA

• Max. output power: 5 kW
• Dimensions (W*H*D): 13.9*31.9*6.5 in (353*810*165 mm)

• Weight: 33.1 lb (15 kgs)

• Manufacturer Warranty: 10 Years
