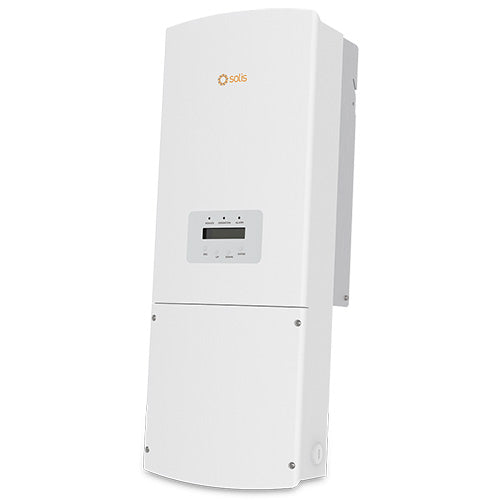

Solis Solar Inverter 3.6kw 4G Single phase Dual MPPT. US Version with APS transmitter with 10 years warranty (NS)

Solis Solar Inverter 3.6kw 4G Single phase Dual MPPT. US Version with APS transmitter with 10 years warranty (NS)

The Solis-1P3.6K-4G-US-APST is a 3.6 kW single-phase, grid-tied solar string inverter designed to convert DC electricity generated by solar panels into AC electricity for residential and small-scale solar power systems. It features dual Maximum Power Point Tracking (MPPT) technology to optimize solar energy harvesting, an integrated APS module-level rapid shutdown transmitter for enhanced safety, and built-in Arc Fault Circuit Interrupter (AFCI) protection to help reduce fire risks. With high conversion efficiency, optional Wi-Fi or cellular monitoring, and a durable Type 4X enclosure, this inverter provides reliable solar energy conversion and system monitoring.

Key Specifications:

• Manufacturer: Solis
• Model: Solis-1P3.6K-4G-US-APST
• Max. input voltage: 600 V
• Rated voltage: 330 V
• Start-up voltage: 120 V
• MPPT voltage range: 100 - 500 V
• Max. input current: 14 A / 14 A / 14 A / 14 A
• Max. short circuit current: 22 A / 22 A / 22 A / 22 A

• Rated output power: 3.6 kW
• Max. apparent output power: 3.6 kVA

• Max. output power: 3.6 kW
• Dimensions (W*H*D): 13.9*31.9*6.5 in (353*810*165 mm)

• Weight: 33.1 lb (15 kgs)

• Manufacturer Warranty: 10 Years
