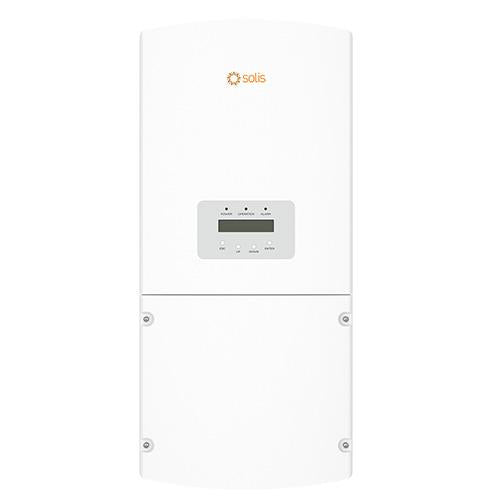

Solis Solar Inverter 10kw 4G Single phase Four MPPT. US Version with APSc transmitter with 10 years warranty (S)

Solis Solar Inverter 10kw 4G Single phase Four MPPT. US Version with APSc transmitter with 10 years warranty (S)

Solis 6-10KW US plus version single phase string inverters have up to 4 MPPTs which are perfect for residential rooftop systems with different roof orientations. The maximum input current per string is up to 14A, which is compatible with new high-power and bifacial PV modules. A built-in (optional) ANSI C12.20, 0.5 Accuracy Class revenue grade meter will guarantee accurate data recording.

Key Specifications:

• Manufacturer: Solis
• Model: Solis-1P10K-4G-US-APST
• Max. input voltage: 600 V
• Rated voltage: 330 V
• Start-up voltage: 120 V
• MPPT voltage range: 100 - 500 V
• Max. input current: 14 A / 14 A / 14 A / 14 A
• Max. short circuit current: 22 A / 22 A / 22 A / 22 A

• Rated output power: 10 kW
• Max. apparent output power: 10 kVA

• Max. output power: 10 kW
• Dimensions (W*H*D): 13.1*28.8*9.8 in (333*732*249 mm)

• Weight: 45.6 lb (20.7 kgs)

• Manufacturer Warranty: 10 Years
