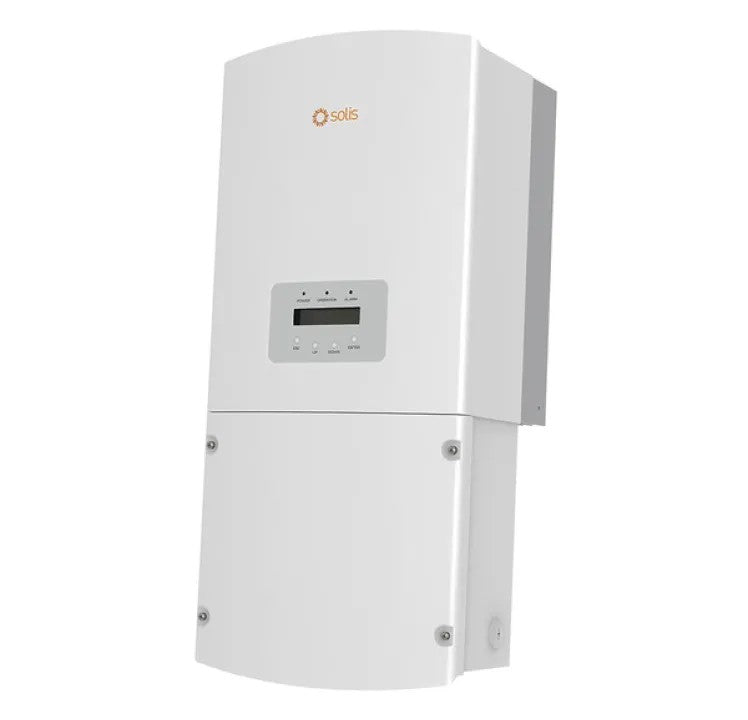

Solis Solar Inverter 10kw 4G Single phase Four MPPT. US Version with 10 years warranty (NS)

Solis Solar Inverter 10kw 4G Single phase Four MPPT. US Version with 10 years warranty (NS)

The Solis-1P10K-4G-US is a 10 kW single-phase grid-tied solar string inverter designed to convert DC electricity generated by solar photovoltaic (PV) panels into AC electricity for residential and small-scale solar installations. It features four Maximum Power Point Tracking (MPPT) channels to optimize solar energy harvesting, peak efficiency of up to 97.8%, and an integrated Arc Fault Circuit Interrupter (AFCI) for enhanced electrical safety. The inverter supports module-level rapid shutdown, optional Wi-Fi and cellular connectivity, and remote system monitoring through the Solis platform. Its corrosion-resistant NEMA 4X enclosure supports indoor or outdoor installation, and it comes with a standard 10-year warranty, with extension options available.

Key Specifications:

• Manufacturer: Solis
• Model: Solis-1P10K-4G-US
• Max. input voltage: 600 V
• Rated voltage: 330 V
• Start-up voltage: 120 V
• MPPT voltage range: 100 - 500 V
• Max. input current: 14 A / 14 A / 14 A / 14 A
• Max. short circuit current: 22 A / 22 A / 22 A / 22 A

• Rated output power: 10 kW
• Max. apparent output power: 10 kVA

• Max. output power: 10 kW
• Dimensions (W*H*D): 13.1*28.8*9.8 in (333*732*249 mm)

• Weight: 45.6 lb (20.7 kgs)

• Manufacturer Warranty: 10 Years
