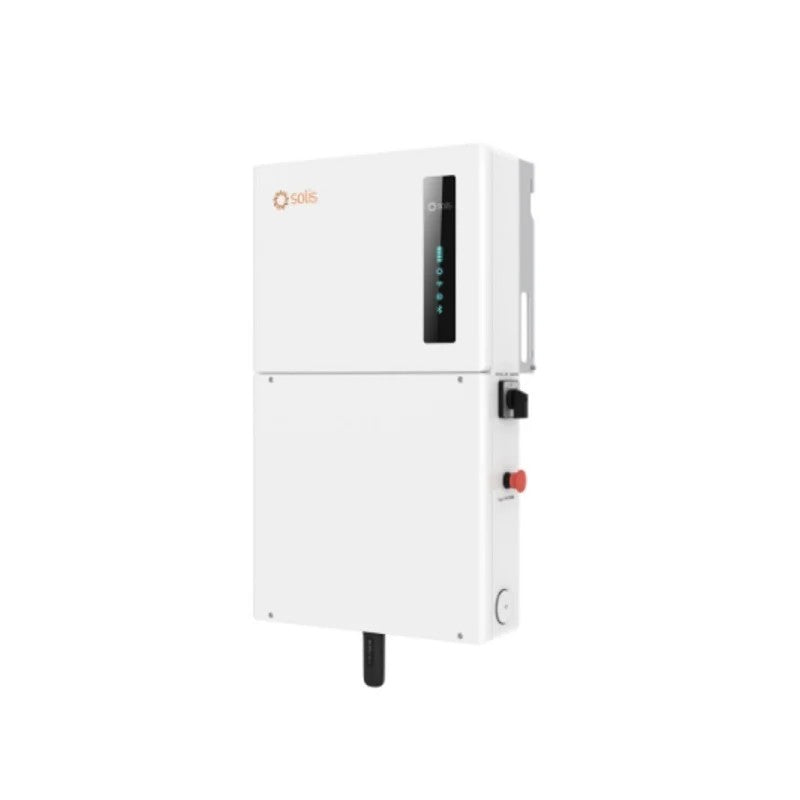

Solis S6 10kW Single-Phase Hybrid Solar Inverter, 3 MPPT, Tigo RSS Transmitter – S6-EH1P10K-H-US-RSS

Solis S6 10kW Single-Phase Hybrid Solar Inverter, 3 MPPT, Tigo RSS Transmitter – S6-EH1P10K-H-US-RSS

Introducing the Solis S6-EH1P10K-H-US-RSS 10.0kW S6 1-Ph Inverter, a high-performance inverter designed to meet your solar energy needs. With its advanced features and reliable performance, this inverter is an excellent choice for residential and commercial solar power systems. warranty.

Technology and Overview:

The Solis S6-EH1P10K-H-US-RSS inverter utilizes cutting-edge technology to convert solar energy into usable electricity. Its advanced MPPT algorithm ensures that the inverter operates at the optimal voltage and current levels, maximizing energy harvest from your solar panels.

Installation and Compatibility:

Installing the Solis S6 inverter is straightforward, and it is compatible with a variety of solar panel configurations. Whether you have a residential rooftop solar system or a small commercial setup, this inverter can be seamlessly integrated into your solar power system.

Benefits and Applications:

The Solis S6-EH1P10K-H-US-RSS inverter offers numerous benefits, including high power output, advanced technology, and reliable performance. It is ideal for residential homes, small businesses, and other applications where solar energy is harnessed to reduce electricity bills and promote sustainability.

Specifications

• Manufacturer: Solis
• Model: S6-EH1P10K-H-US-RSS
• Max Input Voltage: 600 V
• Rated Voltage: 380 V
• Start-Up Voltage: 80 V
• MPPT Voltage Range: 80-520 V
• Max Input Current: 16 A per MPPT
• MPPTs / Strings: 4 / 1
• Battery Type: Lithium-ion
• Voltage Range: 120-500 V
• Max Charge/Discharge: 50 A
• Communication: CAN/RS485
• Rated Output Power: 10 kW
• Max Apparent Power: 10 kVA
• Voltage / Frequency: 240 V / 60 Hz
• Rated Output Current: 41.7 A
• Rated Power: 10 kW
• Surge Power (10 sec): 16 kVA
• Voltage Range: 211-264 V
• Switch Time: <10 ms
• Dimensions (W×H×D): 22.05 × 29.53 × 8.66 in
• Weight: 71.74 lb
• Manufacturer Warranty: 10 Years
