Solis Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with APS transmitter with 10 years warranty (S)

Solis Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with APS transmitter with 10 years warranty (S)

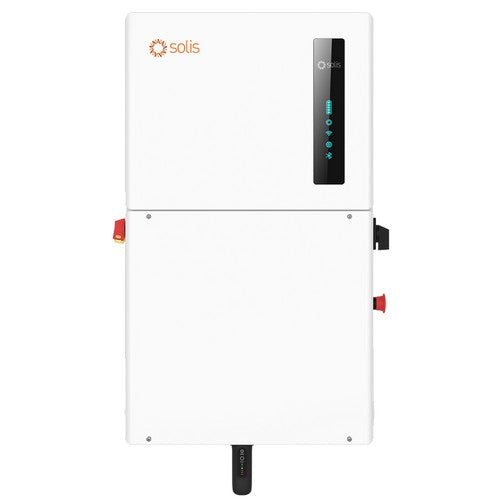

The Solis S6-EH1P11.4K-H-US-APST is an 11.4 kW single-phase hybrid energy storage inverter designed for residential solar power and battery storage systems. It converts solar energy into usable AC electricity, manages battery charging and discharging, and provides backup power during grid outages. Featuring four independent Maximum Power Point Trackers (MPPTs), support for high-power solar modules, 120/240 V split-phase backup output, and less than 10 ms backup transfer time, it offers flexible solar array configuration and reliable power continuity. The inverter supports compatible high-voltage batteries, parallel operation with multiple inverters, generator integration, and remote monitoring and configuration through SolisCloud. The APST model includes an integrated APS rapid shutdown transmitter for compatible module-level rapid shutdown equipment.

Highly Flexible:

• Able to supply a wide range of continuous backup power in the event of a grid outage
• Generates 120/240V backup power without an external autotransformer
• Up to four MPPTs allows for PV string versatility
• Compatible with multiple battery brands, providing up to 150 kWh of storage capacity per inverter
• Multiple energy storage working modes to satisfy various use cases and lifestyles
• Allows up to ten (10) inverters to be stacked in parallel for maximum scalability and flexibility

Efficient Performance:

• Maximum PV input current up to 16A per string
• Generates up to 50A/114kW of continuous backup power with up to 76A for ten seconds
• Backup transfer (switch) time is < 10ms
• DC to DC battery charging for optimal use of PV generated energy
•  Optional module-level optimization & monitoring

Intelligent Design:

• SunSpec modbus certified with the latest SunSpec models

• Supports operation in parallel with a generator and allows the generator to function as the grid source if utility power is lost
• Optional integrated revenue-grade meter and external energy meter for production & consumption monitoring and export power control
• Offers all of the smart inverter functions detailed in IEEE 1547-2018
• Utilizes an energy management system that maximizes efficiency and offers multiple modes of operation for performance customization
• SolisCloud allows for remote system troubleshooting, firmware upgrading, and configuration, reducing O&M costs
• Bi-directional capability can allow the battery to charge from the grid

Safe and Reliable:

• UL 1741 SA/SB and UL 9540 certified
• California Rule 21 and HECO Rule 14H compliant (1)
• Sophisticated alarm system ensures the system operates only under safe conditions and warns you immediately if there is an issue
• Third-party tested and validated for product reliability (2)

• A standard 10-year standard warranty is included
• NEC 2020 compliant with various integrated RSD transmitter options are available for module-level rapid shutdown (3)

• External RSD & emergency power off switch options are also available

Key Specifications:

• Manufacturer: Solis
• Model: S6-EH1P11.4K-H-US-APST
• Max. input voltage: 600 V
• Rated voltage: 380 V
• Start-up voltage: 80 V
• MPPT voltage range: 80-520 V
• Max. input current: 10*32 A
• Max. short circuit current per string: 16 A

• Rated output power: 11.4 kW
• Max. apparent output power: 11.4 kVA

• Dimensions (W*H*D): 21.87*34.88*8.62 in (555.5*866*219mm)

• Weight: 89.59 Ib (40.64 kgs)

• Manufacturer Warranty: 10 Years
