Solis-ACCombiner-800V/800A - 5 year Standard Warranty (Tariff Pricing)

Solis-ACCombiner-800V/800A - 5 year Standard Warranty (Tariff Pricing)

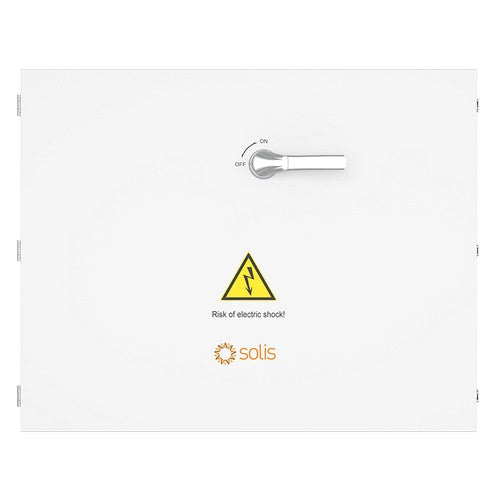

The Solis-ACCombiner-800V/800A is an AC combiner box designed for commercial and utility-scale solar photovoltaic (PV) systems using Solis inverters with an 800V AC output. It combines three AC input circuits into a single output and features 800A output fuse protection, a 65 kA short-circuit interrupt capacity, and a durable NEMA Type 3R enclosure for outdoor installation. Its compact design, simplified electrical connections, and standard overcurrent protection support reliable and safe power distribution in solar installations.

Key Specifications:

• Manufacturer: Solis
• Model: Solis-ACCombiner-800V/800A
• Number of AC input circuits: 3
• Rated input voltage: 800 V
• Rated input current: 3*185 A
• Rated output current: 555 A
• Short circuit interrupt capacity: 65 kA
• Dimensions (W*H*D): 48.2*37*15 in (1225*940*380 mm)
• Weight: 154.3 lb (70 kgs)
