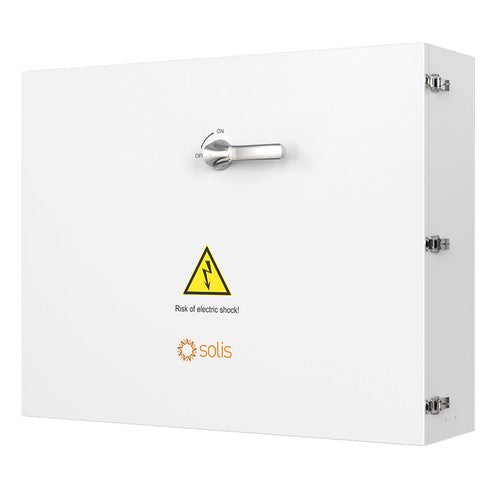

Solis-ACCombiner-800V/630A - 5 year Standard Warranty (Tariff Pricing)
The Solis-ACCombiner-800V/630A is an AC combiner box designed for commercial and utility-scale solar PV systems using Solis inverters with an 800V AC output. It combines two AC input circuits into a single output and provides fuse-based overcurrent protection. Featuring a durable NEMA Type 3R enclosure for outdoor installation, it offers reliable operation, simplified electrical connections, and enhanced system safety.
Key Specifications:
- Manufacturer: Solis
- Model: Solis-ACCombiner-800V/630A
- Number of AC input circuits: 2
- Rated input voltage: 800 V
- Rated input current: 2*251 A
- Rated output current: 502 A
- Short circuit interrupt capacity: 65 kA
- Dimensions (W*H*D): 48.2*37*15 in (1225*940*380 mm)
- Weight: 154.3 lb (70 kgs)
-
