Solis-ACCombiner-800V/1000A - 5 year Standard Warranty (Tariff Pricing)

$7,339.36 USD
$7,339.36 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Strong safety, high economy, standard overcurrent protection
✔️Protection class NEMA Type 3R, which meets the requirements of outdoor installation
✔️Small size, light weight, attached installation, reduce engineering construction costs
✔️Easy connection, simple operation

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Solis logo

  • Details

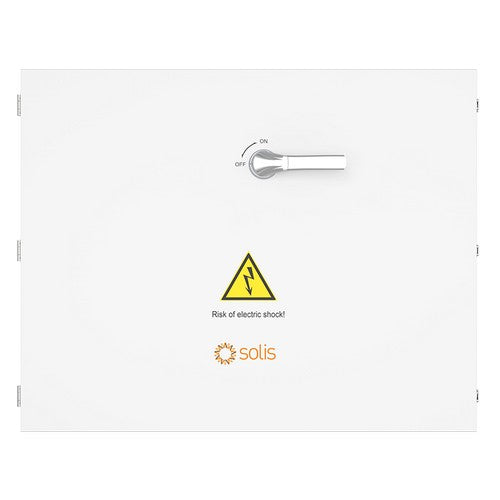

    Solis-ACCombiner-800V/1000A - 5 year Standard Warranty (Tariff Pricing)

    The AC combiner is a highly reliable device and should be used with a series PV inverter with an AC output voltage of 800V. There are several models to choose from, which are widely suitable for various AC combinations of PV systems.

    Key Specifications:

    • Manufacturer: Solis
    • Model: Solis-ACCombiner-800V/1000A
    • Number of AC input circuits: 3, 4
    • Rated input voltage: 800 V
    • Rated input current: 3*251 A, 4*185 A
    • Rated output current: 753 A
    • Short circuit interrupt capacity: 65 kA
    • Dimensions (W*H*D): 48.2*37*15 in (1225*940*380 mm)
    • Weight: 154.3 lb (70 kgs)

  • Resources

    ✔️ Download Datasheet
    ✔️ No quick installation guide available. Email support@solux.energy for file request.
    ✔️ No waranty file available. Email support@solux.energy for file request.

Download Spec Sheet of Solis Inverters, Solis-ACCombiner-800V/1000A
