Solis 90kW Three Phase Ten MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS)

Solis 90kW Three Phase Ten MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS)

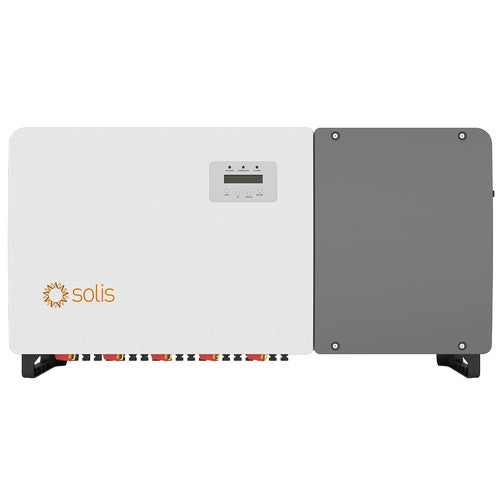

S5-GC90K-US-APST is the preferred PV string inverter for large commercial rooftop or ground mount PV projects. The inverter features 10 independent MPPTs with very wide full-power operating ranges that can work efficiently with both 600Vdc and 1000 Vdc PV arrays. String current up to 16A, perfectly accommodates new high-power and bi-facial PV modules. Easy-to-use online O&M tools make O&M more intelligent and convenient. Optimized DC&AC interconnection will reduce the cost of system cables. Enclosures rated to IP66 protection grade can be installed in the harshest environmental conditions.

Efficient:

• 8/9/10 MPPTs, max. efficiency 98.8% (CEC efficiency 98.3%)

• > 1.5 DC/AC ratio
• String current up to 16A for higher capacity modules


Economic:

• DC side supports "Y" connector
• Support aluminium wire to reduce cost

Safe:

• Type 4X, C5 Anti-Corrosion Level
• AFCI protection, proactively reduces fire risk

• UL 1741 SA and SB
• Integrated nighttime PID recovery for optimal module performance

• High quality component

Smart:

•  Intelligent string monitoring, smart I-V curve scan

• Remote firmware upgrade with simple operation


Specifications:

• Manufacturer: Solis
• Model: S5-GC90K-US-APST
• Max. input voltage: 1000 V
• Rated voltage: 600 V
• Start-up voltage: 195 V
• MPPT voltage range: 180-1000 V
• Max. input current: 10*32 A
• Max. short circuit current: 10*50 A

• Rated output power: 90 kW
• Max. apparent output power: 90 kW
• Max. output power: 90 kW
• Dimensions (W×H×D): 41.9*22.3*13.6 in (1065*567*344.5 mm)

• Weight: 187 lb (85 kgs)

• Manufacturer Warranty: 10 Years
