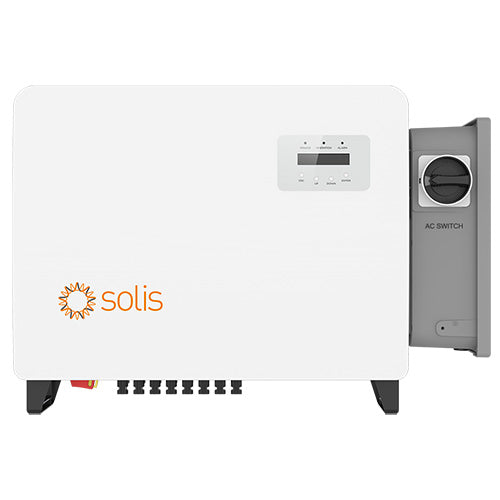

Solis 60kW Three Phase Four MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS)

Solis 60kW Three Phase Four MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS)

The Solis S6-GC60K-US-APST is a 60 kW, three-phase grid-tied solar string inverter designed for commercial and industrial photovoltaic (PV) installations, particularly large commercial rooftop solar systems. It converts DC electricity generated by solar panels into AC electricity for use in buildings and export to the electrical grid. Featuring four independent Maximum Power Point Trackers (MPPTs), it supports flexible solar array configurations and compatibility with high-power solar modules. The inverter offers maximum efficiency of up to 98.8%, integrated Arc Fault Circuit Interruption (AFCI) protection, DC and AC disconnects, intelligent string monitoring, and multiple communication options for remote system monitoring through SolisCloud. The APST configuration includes an APS module-level rapid shutdown transmitter, supporting rapid shutdown requirements for enhanced installation safety. Its Type 4X enclosure and C5 anti-corrosion protection make it suitable for demanding outdoor environments.

Efficient:

• Max. efficiency 98.8% (CEC efficiency 98.5%)
• String current up to 20A
• 3/4 MPPT design, supports multiple orientation system design

• Night time PID recovery function, increases overall system yield (optional)

• Wide voltage range and low startup voltage

Economic:

• 1.5 DC/AC ratio
• Supports high power modules for lower installation costs

• Separable AC wiring box

Safe:

• Type 4X, C5 Anti-Corrosion Level
• AFCI protection, proactively reduces fire risk
• Intelligent redundant fan-cooling
• Integrated module level rapid shutdown transmitter

• High quality components from globally recognized suppliers

• Integrated DC and AC disconnects

Smart:

•  Equipped with external power control interface, supporting zero output power control
• Intelligent string monitoring, smart I-V curve scan
• Supports RS485, Ethernet, WiFi, Cellular
•  Scan to register on SolisCloud, supports remote upgrade and control

Specifications:

• Manufacturer: Solis
• Model: S6-GC60K-US-APST
• Max. input voltage: 1000 V
• Rated voltage: 720 V
• Start-up voltage: 180 V
• MPPT voltage range: 180-1000 V
• Max. input current: 4*40 A
• Max. short circuit current: 4*63 A

• Rated output power: 60 kW
• Max. apparent output power: 66 kVA
• Max. output power: 66 kW
• Dimensions (W×H×D): 30.9*21.6*12.6 in (784*549*320 mm)
• Weight: 110.5 lb (50.1 kgs)

• Manufacturer Warranty: 10 Years
