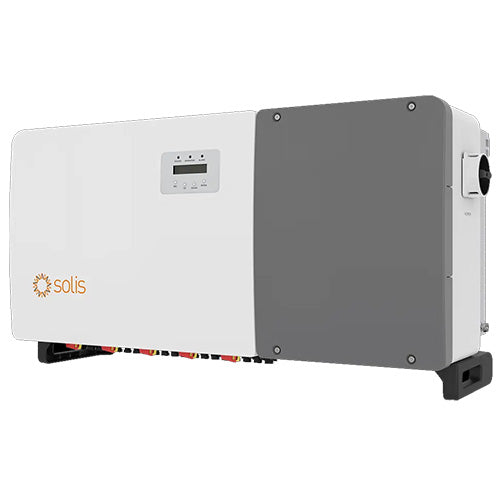

Solis 60kW Three Phase 208Vac Eight MPPT w/ AFCI w/ APS - 10 Year Warranty

Solis 60kW Three Phase 208Vac Eight MPPT w/ AFCI w/ APS - 10 Year Warranty

The S5-GC60K-LV-US string inverters are suitable for three-phase commercial rooftop PV projects with grid voltage of 240 or 208VAC. Both string inverters have high input currents, which enable support of larger PV modules without compatibility issues, better supporting power density and flexibility. Wider operating voltages support operation for longer periods throughout the day, resulting in better system yields. Commissioning, operations and management are simplified through state-of-the-art design and monitoring. Optimized DC and AC connect ports reduce the cost of system cables. Tested to the harshest conditions, Solis' success in the market and global top ratings are largely in part due to the quality we strive for. This product line is also certified PVRSS and UL3741 compliant, meaning that you can realize cost and time savings by supporting simpler installs.

Efficient:

• 8 MPPTs, max. efficiency 98.5% (CEC efficiency 98.1%)
• > 1.5 DC/AC ratio
• String current up to 16A for higher capacity modules

Economic:

•  DC side supports "Y" connector

Safe:

• Type 4X, C5 Anti-Corrosion Level
• External signal control function
• Integrated nighttime PID recovery for optimal module performance
• AFCI protection, proactively reduces fire risk
• High quality components from globally recognized suppliers

Smart:

• Intelligent string monitoring, smart I-V curve scan
• • Remote firmware upgrade with simple operation(1)

Specifications:

• Manufacturer: Solis
• Model: S5-GC60K-LV-US-APST
• Max. input voltage: 1000 V
• Rated voltage: 450 V
• Start-up voltage: 195 V
• MPPT voltage range: 180 - 1000 V
• Max. input current: 8 × 32 A
• Max. short circuit current: 8 × 50 A

• Rated output power: 60 kW
• Max. apparent output power: 60 kVA
• Max. output power: 60 kVA
• Dimensions (W×H×D): 41.9 × 22.3 × 13.6 in (1065 × 567 × 344.5 mm)
• Weight: 200 lb (91 kgs)

• Manufacturer Warranty: 10 Years
