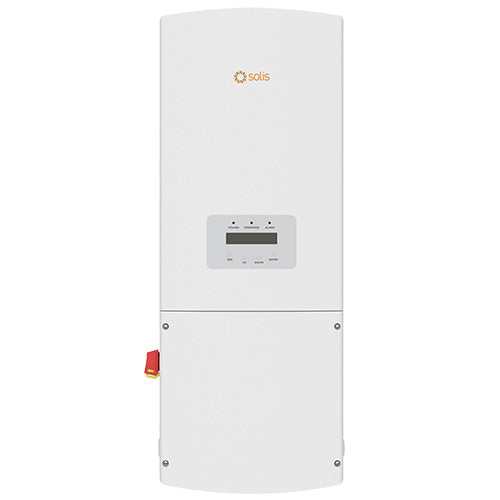

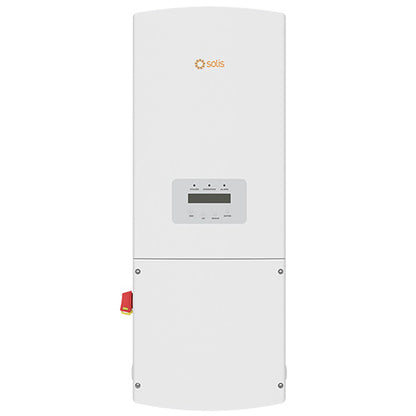

Solis Solar Inverter 5kw 4G Single phase Dual MPPT. US Version with APS transmitter with 10 years warranty (NS)

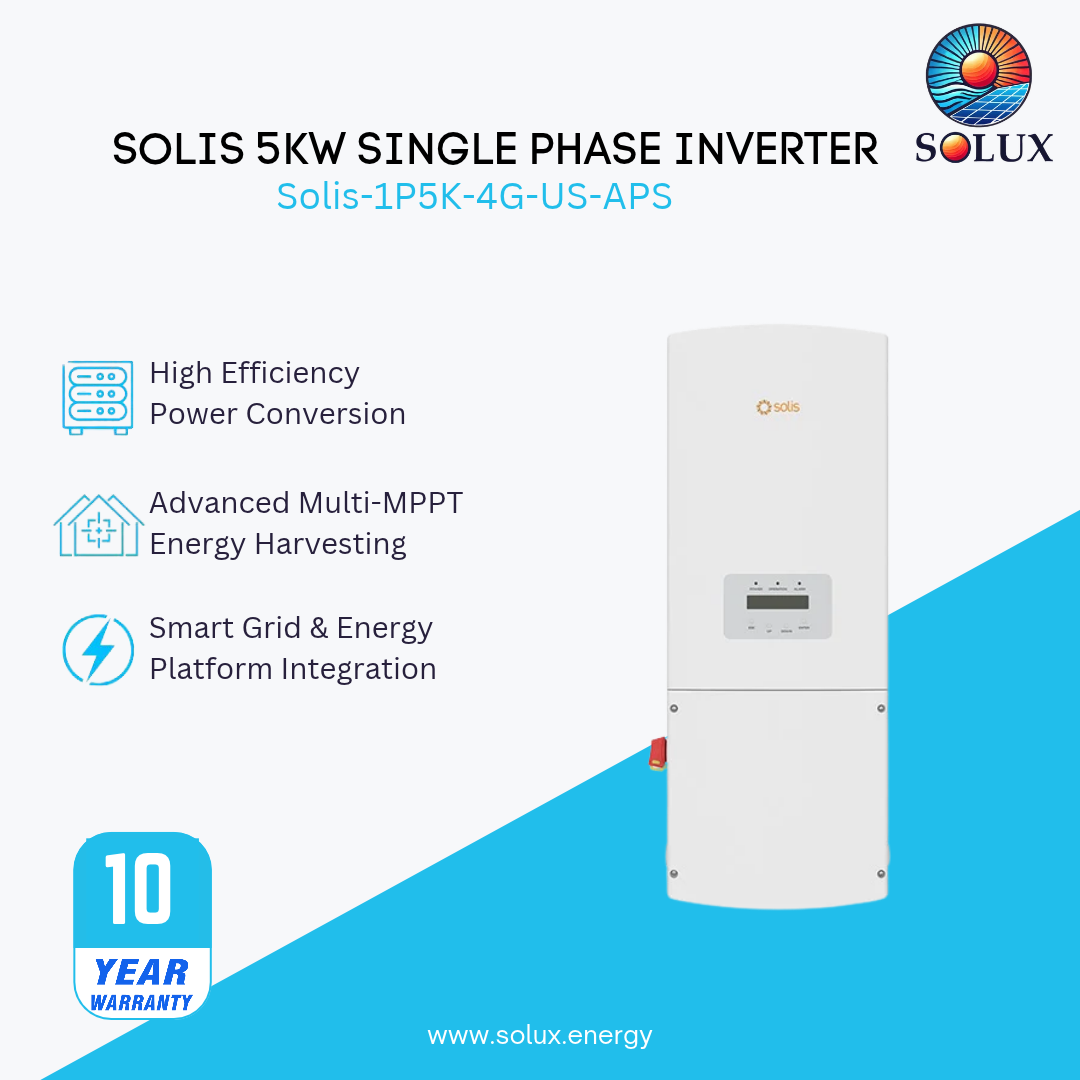

Solis 5kW Single Phase Inverter Solis-1P5K-4G-US-APS

The Solis-1P5K-4G-US-APS is a 5kW single-phase string inverter from the Solis 4G Series, ideal for residential solar systems. It includes a built-in APsmart rapid shutdown transmitter, advanced MPPT tracking, and optional module-level monitoring support for compliant and efficient solar installations.

Special Technology:

• Transformerless Design: Enhances system performance and reduces weight and size.
• Fast MPPT Tracking: Dynamic tracking algorithm for efficient performance across varying irradiance.
• Smart Connectivity: RS485 communication included, with optional Wi-Fi and cellular monitoring add-ons.

Specifications

• Manufacturer: Solis
• Manufacturer Part Number: Solis-1P5K-4G-US-APS
• Rated Output Power: 5,000 W
• Max. DC Input Voltage: 600 V
• MPPT Voltage Range: 90–520 V
• MPPTs / Input Strings: 2 / 2
• Max. Input Current: 14 A per input
• Max. Short Circuit Current: 22 A per input
• AC Output Voltage: Single-phase, 240/208 V
• AC Frequency: 60 Hz
• Max. Output Current (240V): 20.8 A
• Max. Output Current (208V): 24.0 A
• Max. Efficiency / CEC Efficiency: 97.7% / 97.1%
• Nighttime Consumption: < 1 W
• Cooling: Natural Convection
• Enclosure Rating: Type 4X (NEMA 4X)
• Dimensions (W × H × D): 13.9 × 31.9 × 6.5 in
• Shipping Weight: 33.1 lb
• Manufacturer Warranty: 10 Years
