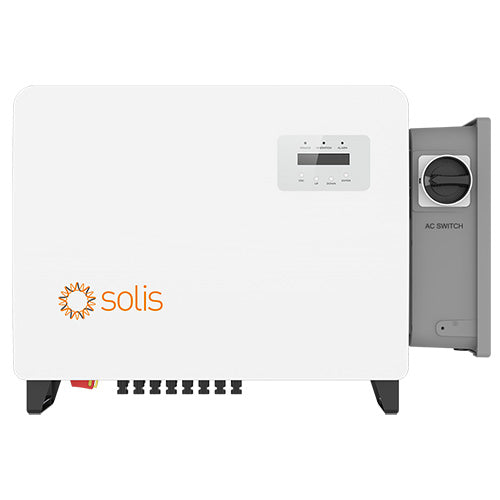

Solis 50kW Three Phase Four MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS)

Solis 50kW Three Phase Four MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS)

The Solis S6-GC50K-US-APST is a high-performance, three-phase grid-tied solar string inverter designed for commercial and industrial photovoltaic (PV) installations, including large rooftop and ground-mounted solar projects. It converts direct current (DC) electricity generated by solar panels into alternating current (AC) electricity for use in facilities or delivery to the electrical grid. With a rated output power of 50 kW, four independent Maximum Power Point Tracking (MPPT) channels, and a maximum conversion efficiency of 98.8%, it supports efficient energy production across multiple solar array orientations. The APST variant includes an integrated APS module-level rapid shutdown transmitter for use with compatible rapid shutdown devices. Additional features include Arc Fault Circuit Interruption (AFCI), integrated DC and AC disconnects, intelligent string monitoring, smart I-V curve scanning, and remote monitoring through SolisCloud. Its Type 4X enclosure and C5 anti-corrosion protection make it suitable for demanding outdoor commercial solar installations.

Efficient:

• Max. efficiency 98.8% (CEC efficiency 98.5%)
• String current up to 20A
• 3/4 MPPT design, supports multiple orientation system design

• Night time PID recovery function, increases overall system yield (optional)

• Wide voltage range and low startup voltage

Economic:

• 1.5 DC/AC ratio
• Supports high power modules for lower installation costs

• Separable AC wiring box

Safe:

• Type 4X, C5 Anti-Corrosion Level
• AFCI protection, proactively reduces fire risk
• Intelligent redundant fan-cooling
• Integrated module level rapid shutdown transmitter

• High quality components from globally recognized suppliers

• Integrated DC and AC disconnects

Smart:

• Equipped with external power control interface, supporting zero output power control

• String current up to 20A
• Intelligent string monitoring, smart I-V curve scan
• Supports RS485, Ethernet, WiFi, Cellular
• Scan to register on SolisCloud, supports remote upgrade and control


Specifications:

• Manufacturer: Solis
• Model: S6-GC50K-US-APST
• Max. input voltage: 1000 V
• Rated voltage: 720 V
• Start-up voltage: 180 V
• MPPT voltage range: 180-1000 V
• Max. input current: 4*40 A
• Max. short circuit current: 4*63 A

• Rated output power: 50 kW
• Max. apparent output power: 55 kVA
• Max. output power: 55 kW
• Dimensions (W×H×D): 30.9*21.6*12.6 in (784*549*320 mm)
• Weight: 108.7 lb (49.3 kgs)

• Manufacturer Warranty: 10 Years
