Solis 40kW Three Phase Three MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS)

Solis 40kW Three Phase Three MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS)

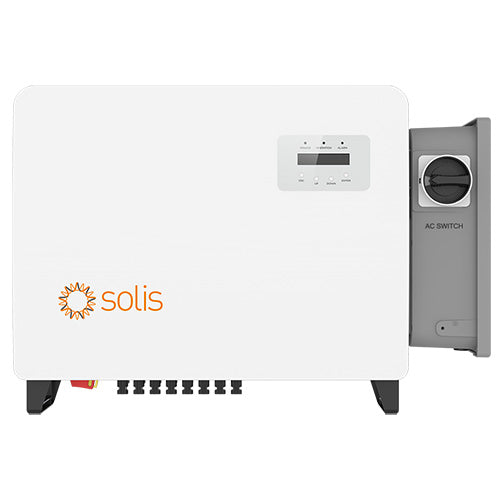

The Solis S6-GC40K-US-APST is a 40 kW three-phase grid-tied string inverter designed for commercial and industrial solar photovoltaic (PV) systems. It converts direct current (DC) electricity generated by solar panels into alternating current (AC) electricity for use in commercial facilities or export to the electrical grid. Featuring multiple independent Maximum Power Point Tracking (MPPT) channels, a maximum conversion efficiency of 98.8%, and support for high-power solar modules, it provides flexible system design and efficient energy production. The APST variant incorporates an APS module-level rapid shutdown transmitter to support rapid shutdown with compatible equipment. Additional features include integrated Arc Fault Circuit Interruption (AFCI), DC and AC disconnects, intelligent string monitoring, smart I-V curve scanning, and remote monitoring through SolisCloud. Its Type 4X enclosure and C5 anti-corrosion protection support reliable operation in demanding installation environments.

Efficient:

• Max. efficiency 98.8% (CEC efficiency 98.5%)
• String current up to 20A
• 3/4 MPPT design, supports multiple orientation system design

• Night time PID recovery function, increases overall system yield (optional)

• Wide voltage range and low startup voltage

Economic:

• 1.5 DC/AC ratio
• Supports high power modules for lower installation costs

• Separable AC wiring box

Safe:

• Type 4X, C5 Anti-Corrosion Level
• AFCI protection, proactively reduces fire risk
• Intelligent redundant fan-cooling
• Integrated module level rapid shutdown transmitter

• High quality components from globally recognized suppliers

• Integrated DC and AC disconnects

Smart:

• Max. efficiency 98.8% (CEC efficiency 98.5%)
• String current up to 20A
• 3/4 MPPT design, supports multiple orientation system design

• Night time PID recovery function, increases overall system yield (optional)
• Wide voltage range and low startup voltage

Specifications:

• Manufacturer: Solis
• Model: S6-GC40K-US-APST
• Max. input voltage: 1000 V
• Rated voltage: 720 V
• Start-up voltage: 180 V
• MPPT voltage range: 180-1000 V
• Max. input current: 3*40 A
• Max. short circuit current: 3*63 A

• Rated output power: 40 kW
• Max. apparent output power: 44 kVA
• Max. output power: 44 kW
• Dimensions (W×H×D): 30.9*21.6*12.6 in (784*549*320 mm)
• Weight: 105.4 lb (47.8 kgs)

• Manufacturer Warranty: 10 Years
