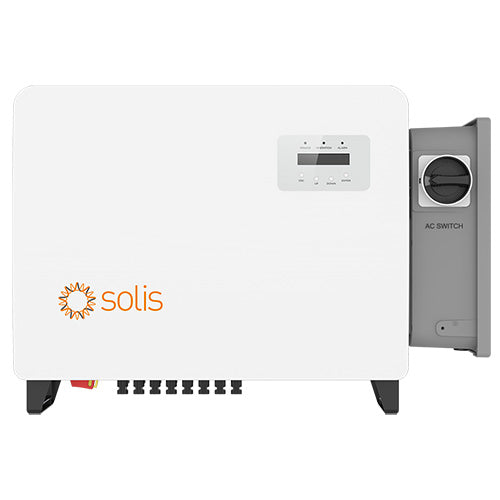

Solis 36kW Three Phase Three MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS) (Minimum 15 week lead time. Non-cancellable, non-returnable)

Solis 36kW Three Phase Three MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS) (Minimum 15 week lead time. Non-cancellable, non-returnable)

S6-GC(25-60)K-US is the preferred PV string inverter for large commercial rooftop PV projects. The inverter features 3/4 independent MPPTs with very wide full-power operating ranges that can bring more yield. String current up to 20A, perfectly accommodates new high-power and bi-facial PV modules. Easy-to-use online O&M tools make O&M more intelligent and convenient. Optimized DC&AC interconnection will reduce the cost of system cables. Type 4X, CS Anti-Corrosion Level can be installed in the harshest environmental conditions.

Efficient:

• Max. efficiency 98.8% (CEC efficiency 98.5%)
• String current up to 20A
• 3/4 MPPT design, supports multiple orientation system design

• Night time PID recovery function, increases overall system yield (optional)

• Wide voltage range and low startup voltage

Economic:

• 1.5 DC/AC ratio
• Supports high power modules for lower installation costs

• Separable AC wiring box

Safe:

• Type 4X, C5 Anti-Corrosion Level
• AFCI protection, proactively reduces fire risk
• Intelligent redundant fan-cooling
• Integrated module level rapid shutdown transmitter

• High quality components from globally recognized suppliers

• Integrated DC and AC disconnects

Smart:

• Max. efficiency 98.8% (CEC efficiency 98.5%)
• String current up to 20A
• 3/4 MPPT design, supports multiple orientation system design

• Night time PID recovery function, increases overall system yield (optional)
• Wide voltage range and low startup voltage

Specifications:

• Manufacturer: Solis
• Model: S6-GC36K-US-APST
• Max. input voltage: 1000 V
• Rated voltage: 720 V
• Start-up voltage: 180 V
• MPPT voltage range: 180-1000 V
• Max. input current: 3*40 A
• Max. short circuit current: 3*63 A

• Rated output power: 36 kW
• Max. apparent output power: 39.6 kVA
• Max. output power: 39.6 kW
• Dimensions (W×H×D): 30.9*21.6*12.6 in (784*549*320 mm)
• Weight: 105.4 lb (47.8 kgs)

• Manufacturer Warranty: 10 Years
