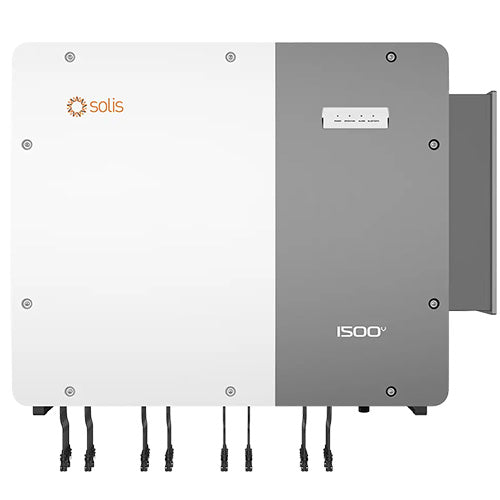

Solis 350kW Three Phase 16 MPPT with 5 Year Standard Warranty

Solis 350kW Three Phase 16 MPPT with 5 Year Standard Warranty

Solis' largest three-phase, 1500 VDC PV string inverter has 12 MPPT (250, 300 and 350) or 16 independent MPPTs (350K) options that allow for great redundancy in larger systems. Redundancy through a distributed method supports overall system uptime. With our high current rated DC inputs, systems can realize full capacity as well of their PV modules. Our system supports ease of installation with MC4 connectors, while maintenance is streamlined with SolisCloud and advanced, remote monitoring. Our fuse-free design supports long-term reliability, further enhancing the overall return on investment for large systems.

Efficient:

• > 1.5 DC/AC ratio
• 12/16 MPPTs, max. efficiency 99.0%
• Lower starting voltage, longer power generation time
• Wide MPPT current design, compatible with 182 and 210 series bifacial modules

Economic:

• Power line communication (PLC) (optional)
• Integrated tracking bracket power supply interface


Safe:

• Type 4X, C5 Anti-Corrosion Level
• Anti-PID and PID recovery function
• Fuse free design, safe and maintenance free
• Power line communication (PLC) (optional)
• Integrated tracking bracket power supply interface

Smart:

• Night SVG function
• Intelligent string monitoring. Smart I-V curve scan
• Remote firmware upgrade with simple operation

Specifications:

• Manufacturer: Solis
• Model: S6-GU350K-EHV-US-M16
• Max. input voltage: 1500 V
• Rated voltage: 1080 V
• Start-up voltage: 500 V
• MPPT voltage range: 480 - 1500 V
• Max. input current: 16 × 30 A
• Max. short circuit current: 16 × 60 A

• Rated output power: 33 kW
• Max. apparent output power: 350 kVA
• Max. output power: 350 kW
• Dimensions (W×H×D): 48.2 × 37.6 × 18.4 in (1223.5 × 954.5 × 467 mm)
• Weight: 297 lb (135 kgs)

• Manufacturer Warranty: 5 Years
