Solis 33kW Three Phase Three MPPT w/ AFCI - 10 Year Standard Warranty (NS) (Minimum 15 week lead time. Non-cancellable, non-returnable)

Solis 33kW Three Phase Three MPPT w/ AFCI - 10 Year Standard Warranty (NS) (Minimum 15 week lead time. Non-cancellable, non-returnable)

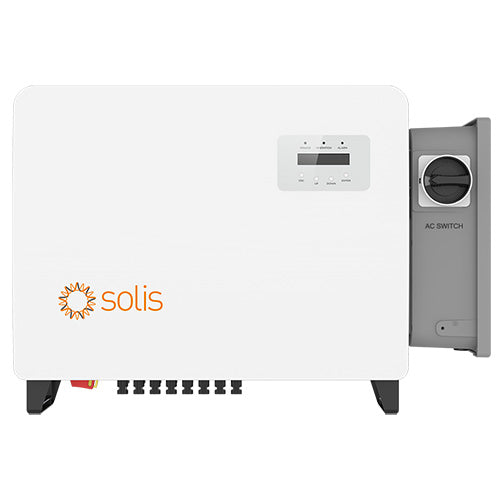

The Solis S6-GC33K-US is a high-efficiency, three-phase grid-tied string inverter designed for commercial and industrial solar photovoltaic (PV) systems. It converts DC electricity generated by solar panels into AC electricity for building consumption and export to the electrical grid. With a rated output power of 33 kW, three independent Maximum Power Point Tracking (MPPT) channels, and a maximum conversion efficiency of 98.8%, it supports efficient solar energy generation across multiple panel orientations. The inverter features integrated DC and AC disconnects, Arc Fault Circuit Interruption (AFCI), Type 4X weather-resistant protection, intelligent string monitoring, and remote monitoring compatibility through SolisCloud. It also supports module-level rapid shutdown transmitter configurations, depending on the selected model variant, making it suitable for demanding commercial rooftop solar installations.

Efficient:

• Max. efficiency 98.8% (CEC efficiency 98.5%)
•  String current up to 20A
• 3/4 MPPT design, supports multiple orientation system design
• Night time PID recovery function, increases overall system yield (optional
• Wide voltage range and low startup voltage

Economic:

• > 1.5 DC/AC ratio
• Supports high power modules for lower installation costs
• Separable AC wiring box

Safe:

• Type 4X, C5 Anti-Corrosion Level
• AFCI protection, proactively reduces fire risk
• Intelligent redundant fan-cooling
• Integrated module level rapid shutdown transmitter

• High quality components from globally recognized suppliers

• Integrated DC and AC disconnects

Smart:

• Equipped with external power control interface, supporting zero output power control
• Intelligent string monitoring, smart I-V curve scan
• Supports RS485, Ethernet, WiFi, Cellular
• Scan to register on SolisCloud, supports remote upgrade and control

Specifications:

• Manufacturer: Solis
• Model: S6-GC33K-US
• Max. input voltage: 1000 V
• Rated voltage: 720 V
• Start-up voltage: 180 V
• MPPT voltage range: 180-1000 V
• Max. input current: 3*40 A
• Max. short circuit current: 3*63 A

• MPPT number/Max. input strings number: 3/6
• Rated output power: 33 kW
• Max. apparent output power: 36.3 kVA
• Max. output power: 36.3 kW
• Dimensions (W×H×D): 30.9*21.6*12.6 in (784*549*320 mm)
• Weight: 96.3 lbs (43.7 kgs)
• Manufacturer Warranty: 10 Years
