Solis 30kW Three Phase 208Vac Three MPPT w/ AFCI w/ APS - 10 Year Warranty

Solis 30kW Three Phase 208Vac Three MPPT w/ AFCI w/ APS - 10 Year Warranty

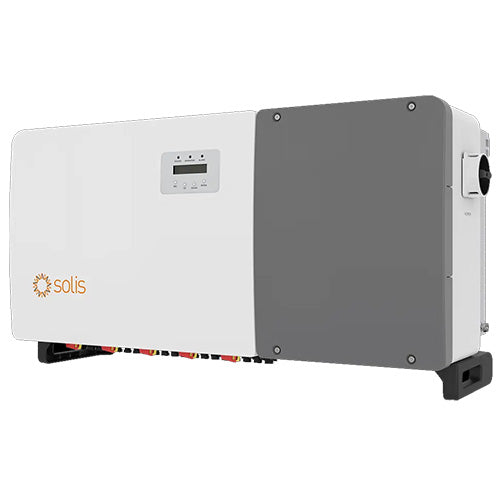

The Solis S6-GC30K-LV-US-APST is a 30 kW, three-phase, grid-tied string inverter designed for commercial solar photovoltaic (PV) systems. It converts DC electricity generated by solar panels into AC electricity for use in buildings and connection to a compatible electrical grid. It features three Maximum Power Point Tracking (MPPT) channels to optimize solar energy harvesting, integrated Arc Fault Circuit Interruption (AFCI), Type II surge protection, and an APS module-level rapid shutdown transmitter configuration (APST) for enhanced system safety. With a maximum efficiency of 97.7%, a Type 4X outdoor-rated enclosure, and smart monitoring capabilities, it provides reliable performance for commercial solar installations.

Efficient:

• Max. efficiency 97.7% (CEC efficiency 97.0%)
• String current up to 20A
• 3 MPPT design, supports multiple orientation system design
• Night time PID recovery function, increases overall system yield (optional)
•  Wide voltage range and low startup voltage

Economic:

• > 1.5 DC/AC ratio
• Supports high power modules for lower installation costs
• Separable AC wiring box

Safe:

• Type 4X, C5 Anti-Corrosion Level
• AFCI protection, proactively reduces fire risk
• Intelligent redundant fan-cooling
• Integrated module level rapid shutdown transmitter

• High quality components from globally recognized suppliers


Smart:

• Equipped with external power control interface, supporting zero output power control
• Intelligent string monitoring, smart I-V curve scan
• Supports RS485, Ethernet, WiFi, Cellular
• Scan to register on SolisCloud, supports remote upgrade and control

Specifications:

• Manufacturer: Solis
• Model: S6-GC30K-LV-US-APST
• Max. input voltage: 1000 V
• Rated voltage: 600 V
• Start-up voltage: 195 V
• MPPT voltage range: 180-1000 V
• Max. input current: 40 A / 40 A / 40 A
• Max. short circuit current: 63 A / 63 A / 63 A

• Rated output power: 30 kW
• Max. apparent output power: 30 kVA
• Max. output power: 30 kW
• Dimensions (W×H×D): 30.9 × 21.6 × 12.6 in (784 × 549 × 320 mm)
• Weight: 103.8 lb (47.1 kgs)
• Manufacturer Warranty: 10 Years
