Solis 25kW Three Phase Three MPPT w/ AFCI w/APS TX - 10 Year Standard Warranty (NS) (Minimum 15 week lead time. Non-cancellable, non-returnable)

Solis 25kW Three Phase Three MPPT w/ AFCI w/APS TX - 10 Year Standard Warranty (NS) (Minimum 15 week lead time. Non-cancellable, non-returnable)

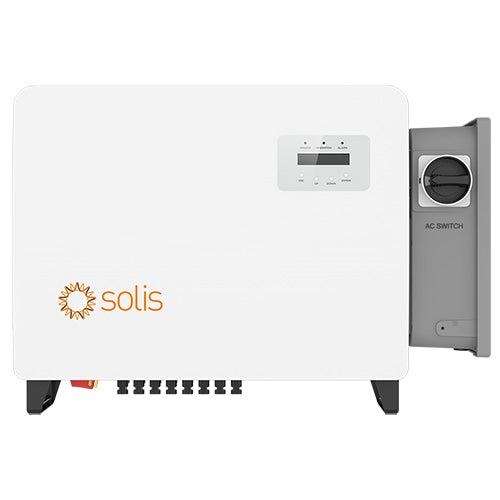

The Solis S6-GC25K-US-APST is a 25 kW, three-phase, grid-tied solar string inverter designed for commercial and industrial photovoltaic (PV) installations, particularly large rooftop solar projects. It features three independent Maximum Power Point Tracking (MPPT) channels, supports up to six PV strings, and delivers maximum conversion efficiency of up to 98.8%. The APST model includes an integrated APS module-level rapid shutdown transmitter for enhanced system safety and simplified installation. Additional features include Arc Fault Circuit Interrupter (AFCI) protection, integrated DC and AC disconnects, intelligent string monitoring, Smart I-V Curve scanning, and optional nighttime Potential-Induced Degradation (PID) recovery. Its Type 4X enclosure, C5 anti-corrosion protection, and support for remote monitoring through SolisCloud make it suitable for demanding commercial solar applications.

Efficient:

• Max. efficiency 98.8% (CEC efficiency 98.5%)
• String current up to 20A
• 3/4 MPPT design, supports multiple orientation system design
• Night time PID recovery function, increases overall system yield (optional)
• Wide voltage range and low startup voltage

Economic:

• > 1.5 DC/AC ratio
• Supports high power modules for lower installation costs
• Separable AC wiring box

Safe:

• Type 4X, C5 Anti-Corrosion Level
• AFCI protection, proactively reduces fire risk
• Intelligent redundant fan-cooling
• Integrated module level rapid shutdown transmitter

• High quality components from globally recognized suppliers
• Integrated DC and AC disconnects

Smart:

• Equipped with external power control interface, supporting zero output power control
• Intelligent string monitoring, smart I-V curve scan
• Supports RS485, Ethernet, WiFi, Cellular
• Scan to register on SolisCloud, supports remote upgrade and control

Specifications:

• Manufacturer: Solis
• Model: S6-GC25K-US-APST
• Max. input voltage: 1500 V
• Rated voltage: 720 V
• Start-up voltage: 180 V
• MPPT voltage range: 180-1000 V
• Max. input current: 3*40 A
• Max. short circuit current: 3*63 A
• MPPT number/Max. input strings number: 3/6
• Rated output power: 25 kW
• Max. apparent output power: 27.5 kVA
• Max. output power: 27.5 kW
• Dimensions (W×H×D): 30.9*21.6*12.6 in (784*549*320 mm)
• Weight: 96.3 lb (43.7 kgs)
• Manufacturer Warranty: 10 Years
