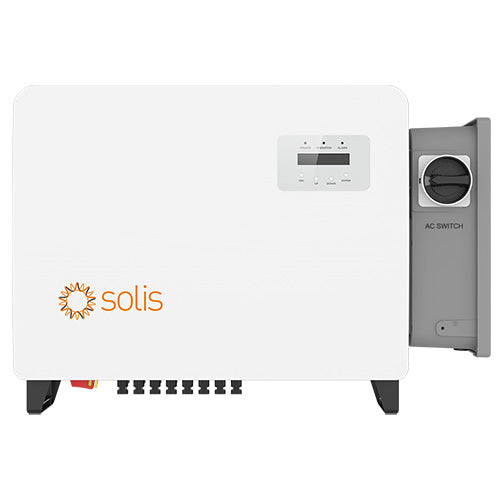

Solis 25kW Three Phase Three MPPT w/ AFCI - 10 Year Standard Warranty (NS) (Minimum 15 week lead time. Non-cancellable, non-returnable)

Solis 25kW Three Phase Three MPPT w/ AFCI - 10 Year Standard Warranty  (NS) (Minimum 15 week lead time. Non-cancellable, non-returnable)

The Solis S6-GC25K-US is a 25 kW, three-phase, grid-tied solar string inverter designed for commercial and industrial photovoltaic (PV) systems, particularly large rooftop solar installations. It features three independent Maximum Power Point Tracking (MPPT) channels, supports high-power and bifacial solar modules with string current up to 20A, and delivers maximum conversion efficiency of up to 98.8%. The inverter includes integrated DC and AC disconnects, Arc Fault Circuit Interrupter (AFCI) protection, module-level rapid shutdown compatibility, intelligent string monitoring, and smart I-V curve scanning. Its Type 4X enclosure and C5 anti-corrosion protection make it suitable for demanding environmental conditions, while remote monitoring and firmware updates support convenient system management.

Efficient:

• Max. efficiency 98.8% (CEC efficiency 98.5%)

• String current up to 20A
• 3/4 MPPT design, supports multiple orientation system design
• Night time PID recovery function, increases overall system yield (optional)
• Wide voltage range and low startup voltage

Economic:

• > 1.5 DC/AC ratio
• Supports high power modules for lower installation costs
• Separable AC wiring box

Safe:

• Type 4X, C5 Anti-Corrosion Level
• AFCI protection, proactively reduces fire risk
• Intelligent redundant fan-cooling
• Integrated module level rapid shutdown transmitter

• High quality components from globally recognized suppliers
• Integrated DC and AC disconnects

Smart:

• Equipped with external power control interface, supporting zero output power control
• Intelligent string monitoring, smart I-V curve scan
• Supports RS485, Ethernet, WiFi, Cellular
• Scan to register on SolisCloud, supports remote upgrade and control

Specifications:

• Manufacturer: Solis
• Model: S6-GC25K-US
• Max. input voltage: 1500 V
• Rated voltage: 720 V
• Start-up voltage: 180 V
• MPPT voltage range: 180-1000 V
• Max. input current: 3*40 A
• Max. short circuit current: 3*63 A
• MPPT number/Max. input strings number: 3/6
• Rated output power: 25 kW
• Max. apparent output power: 27.5 kVA
• Max. output power: 27.5 kW
• Dimensions (W×H×D): 30.9*21.6*12.6 in (784*549*320 mm)
• Weight: 96.3 lb (43.7 kgs)
• Manufacturer Warranty: 10 Years
