Solis 185kW Three Phase 12 MPPT 600VAC - 5 Year Standard Warranty (NS)

Solis 185kW Three Phase 12 MPPT 600VAC - 5 Year Standard Warranty (NS)

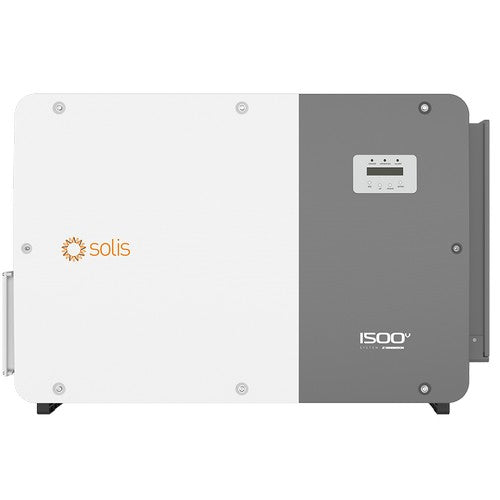

The Solis-185K-EHV-5G-US-PLUS is a 185 kW, three-phase, grid-tied solar string inverter designed for large commercial, industrial, and utility-scale photovoltaic (PV) installations. It supports a maximum DC input voltage of 1,500 V and features 12 Maximum Power Point Tracking (MPPT) channels, a maximum conversion efficiency of 98.7%, and compatibility with high-power and bifacial solar modules. The inverter incorporates integrated Arc Fault Circuit Interrupter (AFCI) protection, DC and AC surge protection, nighttime Potential-Induced Degradation (PID) recovery, intelligent string monitoring, and smart I-V curve scanning to improve system safety, energy production, and maintenance efficiency. Its Type 4X enclosure provides environmental protection for demanding installation conditions.

Efficient:

•  9/12/14 MPPTs, max. efficiency 99.0% (CEC efficiency 98.
• > 1.5 DC/AC ratio
• High power tracking density 75MPPT/MW
• Compatible with 500W+ bifacial modules

Economic:

• Power line communication (PLC) (optional)
• DC side supports "Y" connector
• Support aluminium wire to reduce cost
• Reserve DC energy storage access

Safe:

• Type 4X, C5 Anti-Corrosion Level
• UL 1741 SA and SB
• Integrated nighttime PID recovery for optimal module performance
• Fuse free design, safe and maintenance free
• AFCI protection, proactively reduces fire risk
• High quality components from globally recognized suppliers

Smart:

• Intelligent string monitoring, smart I-V curve scan
•  Remote firmware upgrade with simple operation

Specifications:

• Manufacturer: Solis
• Model: Solis-185K-EHV-5G-US-PLUS
• Max. input voltage: 1500 V
• Rated voltage: 950 V
• Start-up voltage: 500 V
• MPPT voltage range: 480-1500 V
• Max. input current: 12*30 A
• Max. short circuit current: 12*50 A
• MPPT number/Max. input strings number: 12/24
• Rated output power: 185 kW
• Max. apparent output power: 185 kVA
• Max. output power: 185 kW
• Dimensions (W×H×D): 46.1*30.3*15.1 in (1170*770*384 mm)
• Weight: 249.0 lb (113 kgs)
• Manufacturer Warranty: 5 Years
