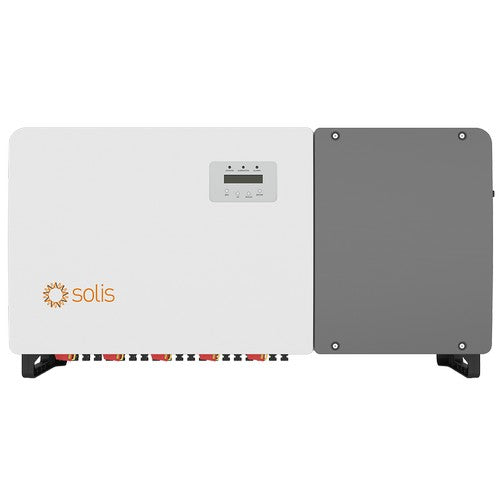

Solis 100kW Three Phase Ten MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS)

Solis 100kW Three Phase Ten MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS)

The Solis S5-GC100K-US-APST is a 100 kW, three-phase, grid-tied solar string inverter designed for commercial and industrial photovoltaic (PV) systems, including large rooftop and ground-mounted solar installations. It features 10 independent Maximum Power Point Tracking (MPPT) channels, high conversion efficiency of up to 98.8%, integrated Arc Fault Circuit Interrupter (AFCI) protection, and a built-in APS module-level rapid shutdown transmitter. The inverter supports high-power solar modules, intelligent string monitoring, smart I-V curve scanning, and remote firmware upgrades to optimize energy production, improve system safety, and simplify system maintenance.

Specifications

• Manufacturer: Solis
• Model: S5-GC100K-US-APST
• Max Input Voltage: 1000 V
• Rated Voltage: 600 V
• Start-Up Voltage: 195 V
• MPPT Voltage Range: 180-1000 V
• Max Input Current: 10*32 A
• Max. short circuit current: 10*50 A
• MPPT number/Max. input strings number: 10/20
• Rated output power: 100 kW
• Max. apparent output power: 100 kVA
• Max. output power: 100 kW
• Dimensions (W×H×D): 41.9*22.3*13.6 in (1065*567*344.5 mm)
• Weight: 187 lb (85 kgs)
• Manufacturer Warranty: 10 Years
