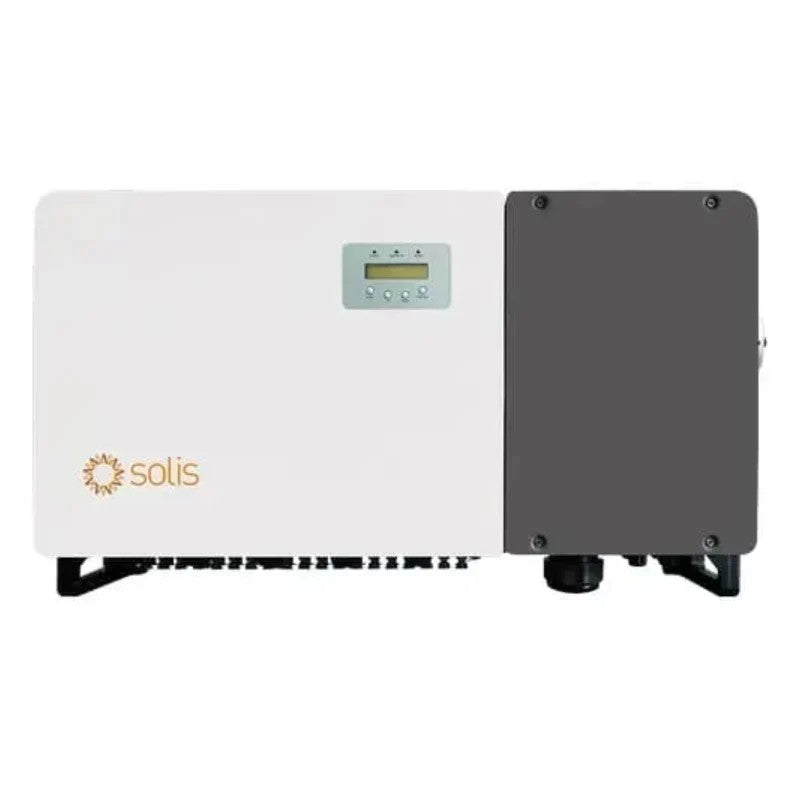

Solis 100kW 3 Phase Inverter with fan 10 MPPT - 10 year standard warranty with integrated Tigo transmitter

Solis 100kW 3 Phase Inverter with fan 10 MPPT - 10 year standard warranty with integrated Tigo transmitter

The Solis Solis-100K-5G-US-RSS is a high-performance inverter designed for solar power installations. With a capacity of 100kW and 10 MPPT (Maximum Power Point Tracking), it efficiently converts solar energy into usable electricity, making it suitable for a wide range of applications.

Technology and Overview:

The Solis-100K-5G-US-RSS utilizes advanced technology to deliver efficient and reliable performance in solar power generation. With its 10 MPPTs, it can optimize energy capture across multiple arrays, while the fan cooling system ensures optimal operating temperatures for enhanced longevity.

Installation and Compatibility:

This inverter is designed for easy installation and seamless compatibility with a wide range of solar PV systems. Whether used in commercial or utility-scale installations, it integrates smoothly to provide reliable power conversion and distribution.

Benefits and Applications:

The Solis Solis-100K-5G-US-RSS offers numerous benefits, including high efficiency, low maintenance requirements, and compatibility with diverse system configurations. It is ideal for utility-scale solar farms, commercial rooftops, and industrial installations.

Specifications:

• Manufacturer: Solis
• Model: Solis-100K-5G-US-RSS
• Max Input Voltage: 1000 V
• Rated Voltage: 600 V
• Start-Up Voltage: 195 V
• MPPT Voltage Range: 180-1000 V

• Max. short circuit current: 10*40 A
• MPPT number/Max. input strings number: 10/20
• Rated output power: 100 kW
• Max. apparent output power: 100 kVA
• Max. output power: 100 kW
• Dimensions (W×H×D): 41.9*22.3*13.6 in (1065*567*344.5 mm)
• Weight: 187 lb (85 kgs)
• Manufacturer Warranty: 10 Years
