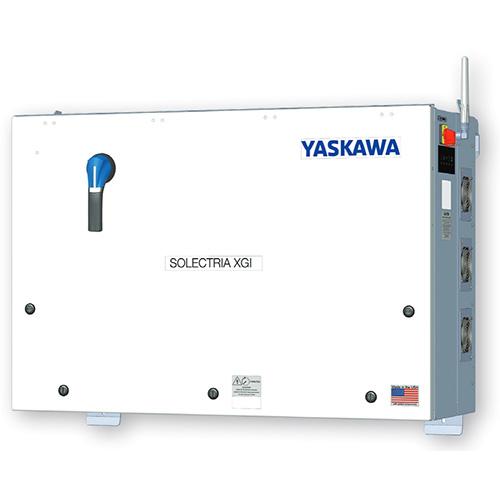

Solectria XGI 1500-250/250-600 Inverter, Transformerless, 250kW (250kVA) Power Rating

Solectria XGI 1500-250/250-600 Inverter, Transformerless, 250kW (250kVA) Power Rating, 1500VDC Max Input, 600VAC Output, 5 Year Standard Warranty, UL 1741SB certified Rule 21 compliant. Made in the USA. (Solectria part number UUX002229. Price reflects the cost of U.S. Tariffs.)

The XGI 1500-250 and XGI 1500-200 feature SiC technology, high power and high efficiency that places them at the top end of the utility-scale string inverters in the market.

Yaskawa Solectria Solar designs all XGI 1500 utility-scale string inverters for high reliability and builds them with the highest quality components -- selected, tested and proven to last beyond their warranty. The XGI 1500 inverters provide advanced grid-support functionality and meet the latest IEEE 1547 and UL 1741 standards for safety.

The XGI 1500 inverters provide ideal solutions for ground-mounted utility-scale PV systems, with models available for service connections at 600 Vac and 480 Vac.. Designed and engineered in Lawrence, MA, the SOLECTRIA XGI inverters are assembled and tested at Yaskawa America's facilities in Buffalo Grove, IL. The XGI 1500 inverters are Made in the USA with global components, and are compliant with the Buy American Act.

Specifications:

• Manufacturer Part Number: UUX002229
• Model: XGI 1500-250/250-600

Mechanical:

•  Rated AC Power: 250 kW / 250 kVA
• Maximum DC Input Voltage: 1,500 VDC
• AC Output Voltage: 600 VAC, 3-phase
• Maximum DC/AC Ratio: 2.0
• Peak Efficiency: 99.0%
• Inverter Type: Transformerless utility-scale string inverter
• PV Inputs: 2 input PV output circuits
• Overcurrent Protection: No additional overcurrent protection required for the two PV output circuits, according to the product listing.
• Grid Support: Advanced grid-support functionality; Rule 21 / UL 1741SA capabilities
• Communication: SunSpec Modbus Certified
• Monitoring: Local Wi-Fi access to connected inverters
• Remote Service: Remote diagnostics and firmware upgrades
