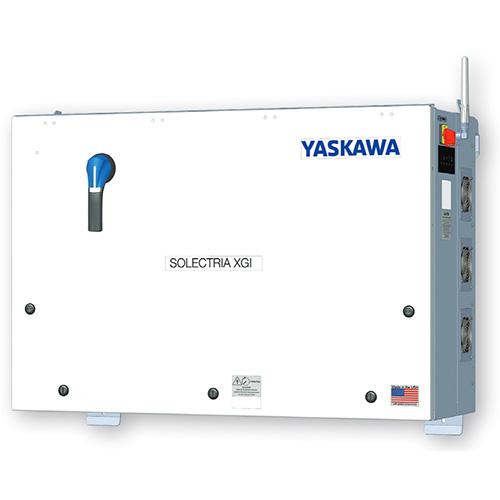

Solectria XGI 1500-250/250-600-DCG Inverter, Transformerless, 250kW (250kVA) Power Rating, 1500VDC Max Input, 600VAC Output, 5 Year Standard Warranty, Made in the USA. Includes grounded DC input, for compatibility with all First Solar PV modules.

Solectria XGI 1500-250/250-600-DCG Inverter, Transformerless, 250kW (250kVA) Power Rating, 1500VDC Max Input, 600VAC Output, 5 Year Standard Warranty, Made in the USA. Includes grounded DC input, for compatibility with all First Solar PV modules.

The XGI 1500-250 and XGI 1500-200 feature SiC technology, high power and high efficiency that places them at the top end of the utility-scale string inverters in the market.

Yaskawa Solectria Solar designs all XGI 1500 utility-scale string inverters for high reliability and builds them with the highest quality components -- selected, tested and proven to last beyond their warranty. The XGI 1500 inverters provide advanced grid-support functionality and meet the latest IEEE 1547 and UL 1741 standards for safety.

The XGI 1500 inverters provide ideal solutions for ground-mounted utility-scale PV systems, with models available for service connections at 600 Vac and 480 Vac.. Designed and engineered in Lawrence, MA, the SOLECTRIA XGI inverters are assembled and tested at Yaskawa America's facilities in Buffalo Grove, IL. The XGI 1500 inverters are Made in the USA with global components, and are compliant with the Buy American Act.

Specifications:

• Manufacturer Part Number: UUX002286
• Model: XGI 1500-250/250-600-DCG

Mechanical:

•  Rated AC Power: 250 kW / 250 kVA
• Maximum DC Input Voltage: 1,500 VDC
• AC Output Voltage: 600 VAC, 3-phase
• Maximum DC/AC Ratio: 2.0
• Peak Efficiency: 99.0%
• CEC Efficiency: 98.5%
•  Inverter Type: Transformerless utility-scale string inverter
• DC Input: Grounded DC input
• PV Compatibility: Compatible with First Solar PV modules
• MPPT: Single DC input / one MPPT zone
• PV Source Circuits: Accepts two input PV output circuits
• Maximum Output Overcurrent Protection: 400 A, 3-pole, 600 VAC
