Description

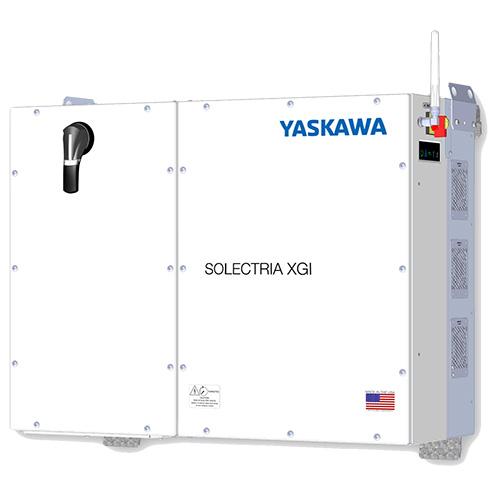

Solectria XGI 1500-150/166-UL Inverter, Transformerless, 150kW (166kVA) Power Rating, 1500VDC Max Input, 600VAC Output, 5 Year Standard Warranty, UL 1741SB certified Rule 21 compliant. Made in the USA. (Solectria part number UUX002088. Price reflects the cost of U.S. Tariffs implemented in March 2025.)
UUX002088 is the Yaskawa Solectria XGI 1500-150/166-UL, a utility-scale, transformerless three-phase string inverter. It has a 150 kW continuous AC output and 600 VAC AC output.
Specifications:
- Manufacturer Part Number: UUX002088
- Model: XGI 1500-150/166-UL
- Product Type: Utility-scale string inverter
Mechanical:
- Continuous AC Power: 150 kW
- Apparent Power: 166 kVA
- AC Voltage: 600 VAC
- AC Frequency: 60 Hz
- Maximum DC Input Voltage: 1,500 VDC
- Maximum DC Input Current: 178 A
- Operating DC Voltage: 860–1,450 VDC
- MPPT: 1
- Peak Efficiency: 99.0%
- CEC Efficiency: 98.5%
- Phase: 3-phase
- Enclosure: Type 4X
- Topology: Transformerless.
-
