SOLECTRIA (WIRING BOX FOR PVI 36(V2)/50/60TL TRANSFORMERLESS INVERTER, 15 FUSED INPUTS (5 PER ZONE), 20A FUSES INCLUDED [MUST ORDER INVERTER TOP BOX

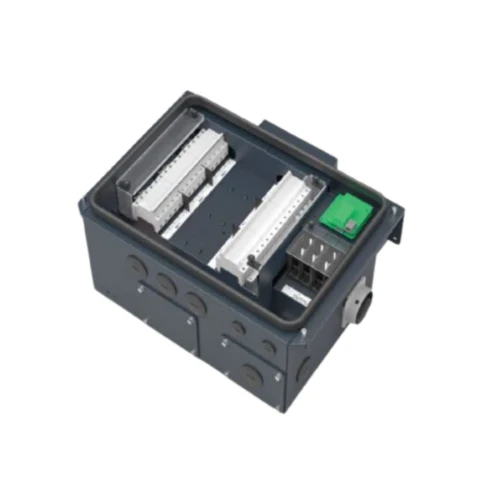

The PVI-36-50-60TL-WB-S is a standard fused wire box designed for the Yaskawa Solectria PVI-36TL, PVI-50TL, and PVI-60TL transformerless three-phase string inverters. It provides the DC PV input connection and string-fusing interface for the inverter. The standard version fuses both polarities and does not require an MLRSD transmitter.
-
Description
Specifications:
- Manufacturer Part Number: PVI-36-50-60TL-WB-S
- Product type: Standard fused wire box
- Shipping Weight: 33 lb
Mechanical:
- Compatible inverters: PVI-36TL / PVI-50TL / PVI-60TL
- Fused inputs: 15
- Fusing: Both polarities
- Fuse supplied: 25 A
- Accepted fuse range: 15–30 A
- Application: PV DC string input connection and protection
-
Resources
Datasheet
No datasheet file resource available. Email support@solux.energy for file request.
Quick Installation Guide
✔️ Download Quick Installation Guide
Warranty
No warranty file resource available. Email support@solux.energy for file request.
