Solectria Wiring Box for PVI 36(V2)/50/60TL Transformerless Inverter, 15 Fused Inputs (5 per Zone), 20A fuses included [MUST ORDER INVERTER TOP BOX], includes PLC transmitter and bleed-down circuit for Module-Level Rapid Shutdown with APsmart receivers (RSD-APS, RSD-APS-Q, RSDAPSD20).

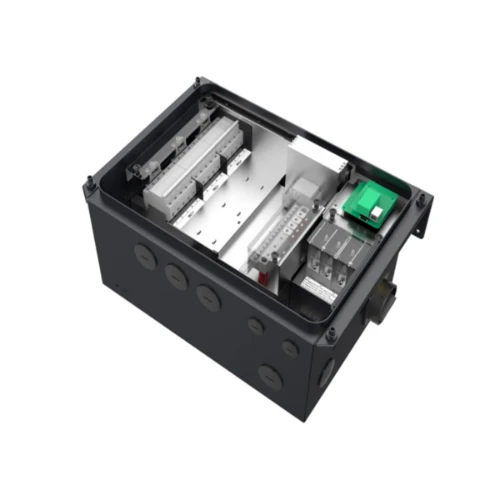

The PVI-36-50-60-WB-AP is a wiring box/accessory for Yaskawa Solectria PVI 36TL, PVI 50TL, and PVI 60TL transformerless solar inverters. It provides the inverter's DC input connections, fused inputs, and a built-in APsmart module-level rapid-shutdown transmitter/bleed-down circuit. It is not a standalone inverter.
-
Description
Specifications:
- Manufacturer Part Number: PVI-36-50-60-WB-AP
- Product type: Wiring Box
- Shipping Weight: 5 lb
Mechanical:
- Fused Inputs: 15
- Fuse Configuration: 5 per MPPT zone
- Included Fuse: 20 A
- Polarity: Positive polarity fused
- Rapid Shutdown: APsmart transmitter built in
- Enclosure: NEMA Type 4X when used as part of the specified inverter system
- Dimensions: Approx. 10 x 8 x 4 inches
-
