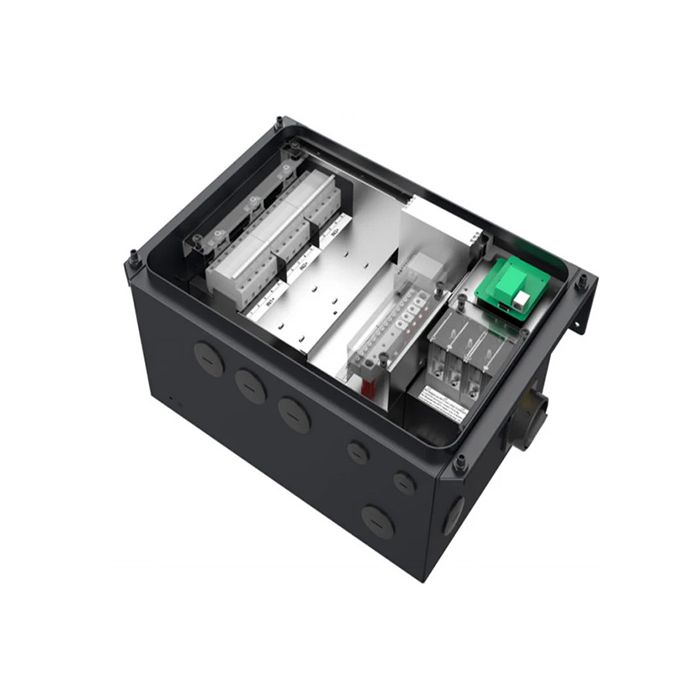

Solectria Wiring Box for PVI 25TL-208 Transformerless Inverter

Solectria Wiring Box for PVI 25TL-208 Inverter, 6 Fused Inputs (2 per Zone), 25A fuses included [MUST ORDER INVERTER TOP BOX], includes PLC transmitter and bleed-down circuit for Module-Level RSD with APsmart receivers

Must Order Inverter Top Box

Yaskawa Solectria Solar’s PVI-25TL-208 25kW (25kVA) three phase string inverters are designed for rooftop and carport applications.

PVI-25TL-208 DESIGN
These high performance, advanced and reliable inverters are designed specificallyfor the North American environment and grid.
High efficiency at 97.0% peak and 96.5% CEC, wide operating voltages, broad temperature ranges and a NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications.
The product ships with the Rapid Shutdown Ready wirebox, fully integrated and separable with touch-safe fusing, monitoring, and AC and DC disconnect switches.
The integrated Sunspec compliant PLC transmitter in the wirebox enables PVRSS certified module-level rapid shutdown when used with APsmart products.
The Ethernet Network Card enables monitoring, controls and remote product upgrades

Features:

• Certified to IEEE 1547-2018 and UL 1741SB
• Wirebox models with built-in SunSpec compliant transmitter for ModuleLevel Rapid Shutdown for simple, safe NEC compliance
• UL Listed as a PV Rapid Shutdown System with APsmart
• Integrated UL-listed ArcFault protection
• 15-90° mounting angle allows low-profile rooftop installations
• 3 MPPT’s with 2 inputs each for PV array flexibility
• Industry-leading DC/AC ratio of 1.8
• Integrated AC and DC disconnects
• Remote firmware upgrades and diagnostics
• NEMA 4X outdoor-rated enclosure with proven performance
• Copper and Aluminum compatible AC connections
• Compatible with Bifacial PV Modules
