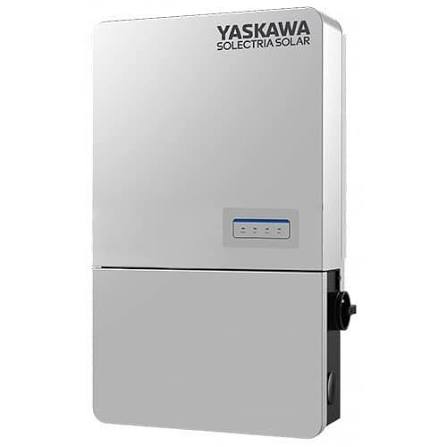

Solectria PVI-25TL-480-R Inverter: transformerless, 25kW Power Rating, 1000VDC Max Input, 480VAC Output,10 Year Standard Warranty

Solectria PVI-25TL-480-R Inverter: transformerless, 25kW Power Rating, 1000VDC Max Input, 480VAC Output,10 Year Standard Warranty, UL 1741SB certified Rule 21 compliant. Included wiring box has 20A Fuses, PLC transmitter and bleed-down circuit for Module-Level Rapid Shutdown with APsmart receivers (RSD-APS, RSD-APS-Q, RSD-APS-D20)

The Solectria PVI-25TL-480-APS25 is a commercial 25 kW, 480 VAC, three-phase transformerless string inverter used to convert DC electricity from solar PV panels into AC electricity for a building or grid-connected electrical system. The APS25 configuration includes an integrated APsmart rapid-shutdown transmitter and 25 A fuses.

Specifications:

• Manufacturer Part Number: PVI-25TL-480-APS25
• Inverter Type: Commercial transformerless String Inverter

Mechanical:

• Rated AC power: 25 kW
• Maximum PV power: 37.5 kW
• Maximum DC voltage: 1,000 VDC
• Maximum PV current: 90 A total / 45 A per MPPT
• AC output current: 30.5 A
• Frequency: 60 Hz
• Power factor: >0.99 at unity; adjustable 0.8 leading to 0.8 lagging
• THD: <3%
• Peak efficiency: 98.5%
• Enclosure: NEMA Type 4X
• Dimensions: Power head 15.95 × 15.75 × 7.875 in; wirebox 10.24 × 15.75 × 7.875 in
• Weight: approximately 61.7 lb / 28 kg total
• Operating temperature: −30°C to +60°C, with derating above +45°C
