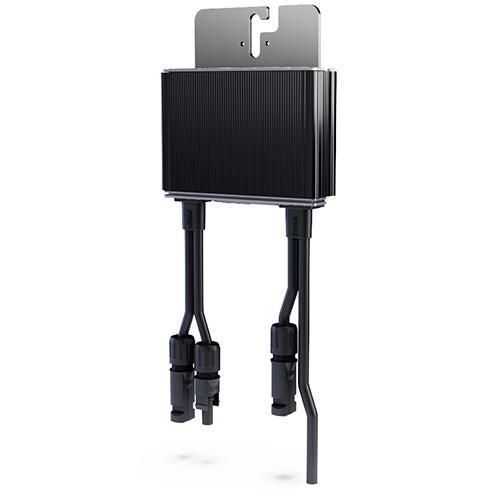

SolarEdge U650 RESIDENTIAL POWER OPTIMIZER

SolarEdge  U650 RESIDENTIAL POWER OPTIMIZER

The SolarEdge U650 is a 650 W DC power optimizer designed for SolarEdge residential PV systems. It performs module-level Maximum Power Point Tracking (MPPT), helps reduce energy losses from shading/module mismatch, and provides module-level monitoring and rapid-shutdown functionality. The current U650 listing identifies it as the U.S./Domestic Content version.

Technical Specifications:

• Product: SolarEdge U650 Power Optimizer
• Rated Input Power: 650 W DC
• Maximum Input Voltage: 60 V DC
• MPPT Voltage Range: 8–60 V DC
• Maximum Input Current: 15 A DC
• Maximum Short-Circuit Current: 18.75 A DC
• Maximum Output Current: 15 A DC
• Maximum System Voltage: 1000 V DC
• Peak Efficiency: 99.5%
• Protection Rating: IP68 / NEMA 6P
• Connectors: MC4
• Dimensions: 155 × 129 × 30 mm
• Weight: 0.72 kg / 1.6 lb
