Description

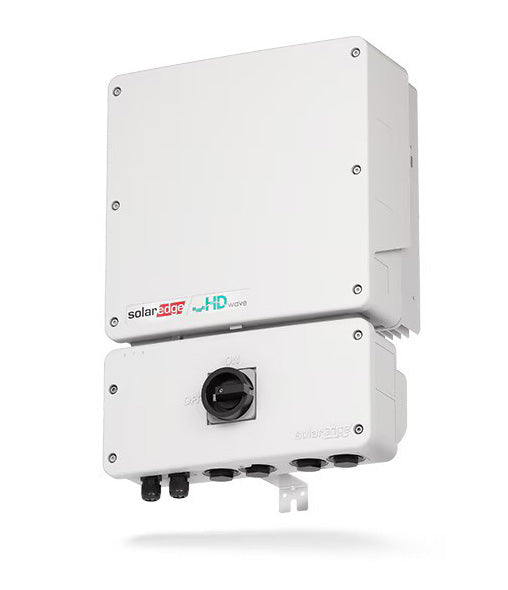

SolarEdge, Home Hub SE3800H-US HD-Wave, Single Phase, Grid Tied Inverter, Dual Rated 3.8kW/11.4kW Battery Access, 240Vac, 60 Hz, 2 Unfused Input, Ground-Fault/Arc-Fault Protection, RS485, Ethernet, with Cellular Modem and 5 Year Cell Plan, -40C, AC RSD, w/ PCS, RGM, and Consumption Meter (Add CT’s), UL1741-SB, 12 Yr. Warr, USA Built, USE3800H-USMNBL75
This item includes domestic content and if used in accordance to the provisions set forth by the IRS, may qualify the taxpayer for a Domestic Content Bonus Credit. The Domestic Content Bonus Tax Credit Adder is only available for residential systems are third party owned ("TPO"). Each customer will need to confirm with their TPO financer that the specific products they are buying have been selected and approved.
Key features:
-
Grid-Tied Continuous Power: 3, 800 W at 240V AC (16 A continuous).
-
Backup / Off-Grid Power: Up to 7, 600 W surge capacity during backup operation.
-
Max DC Input Power: Up to 7, 600 W (200% DC-to-AC oversizing ratio permitted).
-
Efficiency: 99% CEC weighted efficiency.
-
-
Resources
Datasheet
✔️ Download Datasheet
Quick Installation Guide
✔️ No installation file resource available. Email support@solux.energy for file request.
Warranty
✔️ No warranty file resource is available. Email support@solux.energy for file request.
