Description

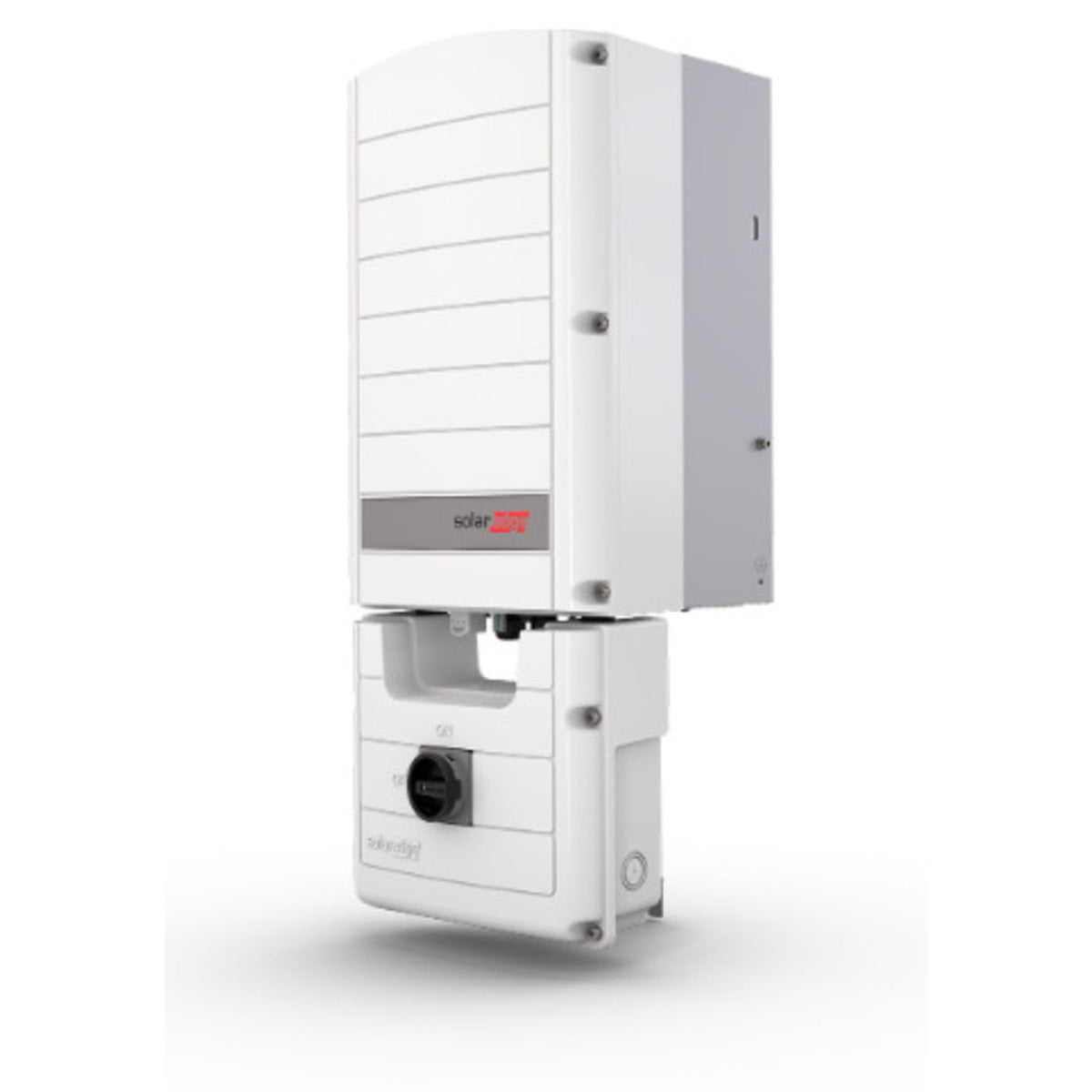

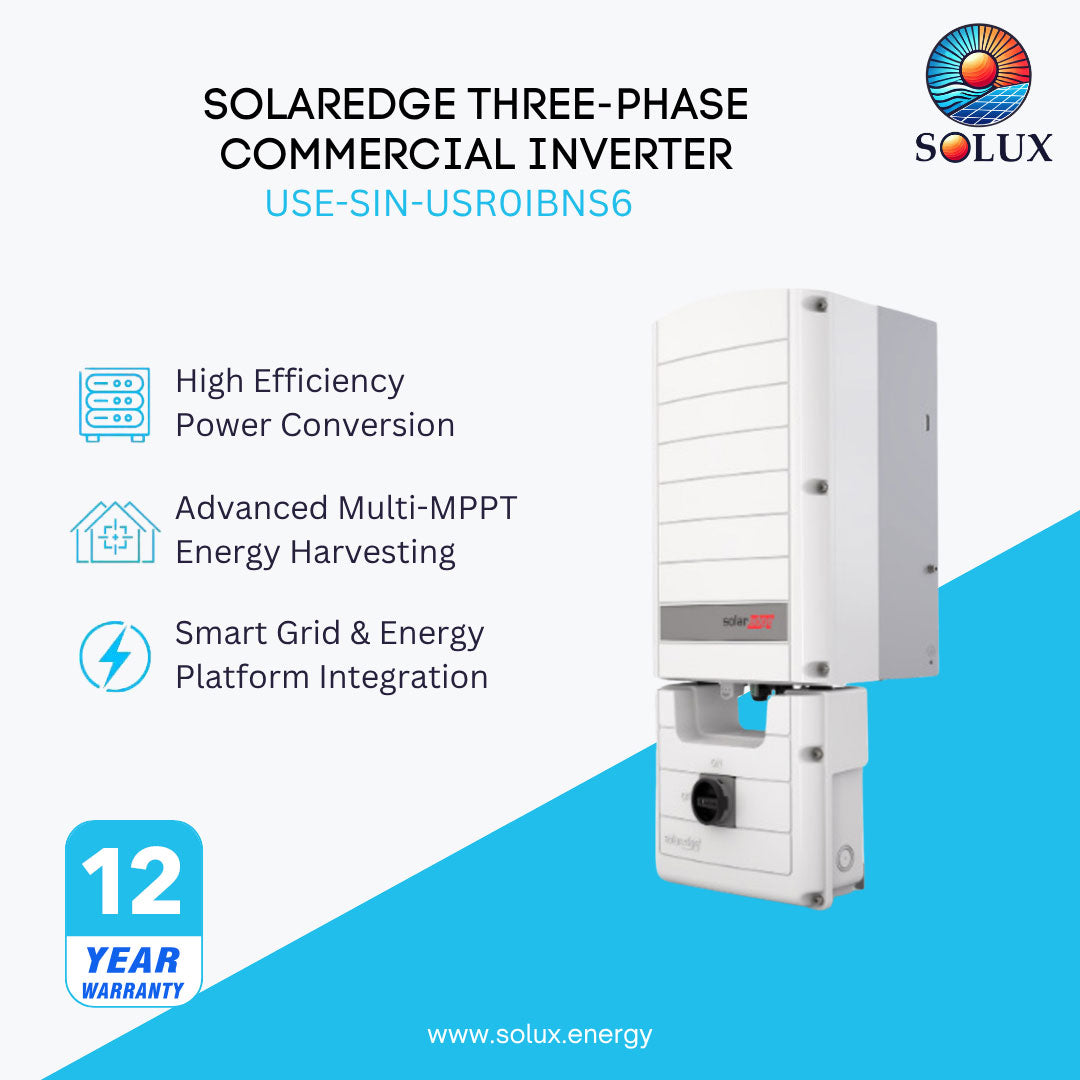

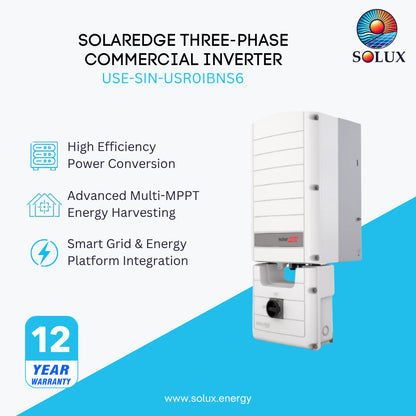

SolarEdge Commercial Inverter, 3 Phase, RSD Mulitple Input, 208/480V AC, Fuse-Less Type
Commercial Inverter, 3 Phase, RSD Mulitple Input, Configured 10/17.300kW at 208 Volt AC, 30/40kW at 480 Volt AC, 48.250 Amp per Phase, Fuse-Less Type, NEMA 3R Rated for Indoor/Outdoor Applications, 31.800 x 12.500 x 11.500 Inch, Bracket Mount
SolarEdge's commercial inverters have built-in module level mointoring with ethernet wireless or cellular communication for full system visibilty, coupled with the SolarEdge SetApp, you can monitor your system remotely.
Features:
- Small, lightest in its class, and easy to install outdoors or indoors on provided bracket
- Specifically designed to work with power optimizers
- Built-in type 2 DC and AC Surge Protection, to better withstand lightning events
- Integrated safety switch
- UL 1741 SA and SB certified, for CPUC Rule 21 grid compliance
- Fixed DC voltage inverter for superior efficiency and longer strings
Specifications:
- Phase: 3
- Wattage: 30 kW, 10 kW, 17 kW, 40 kW
- Mounting: Bracket
- Depth: 11.800 in
- Allowable Gauge Range: 12 - 6
- Volts AC: 480, 208
- Amps: 48
- Width: 12.500 in
- IP/NEMA Rating: NEMA 3R
-
