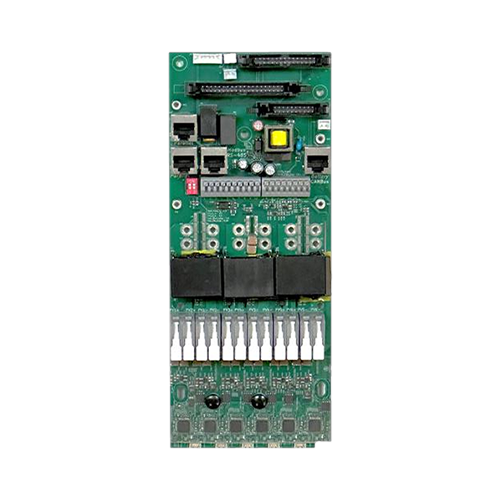

Sol-Ark TX/RX Transmitter for Limitless-15k

Sol-Ark TX/RX Transmitter for Limitless-15k

Sol-Ark TX-15K-A transmitters are part of the Rapid Shutdown Line, they are located inside Sol-Ark 15K-2P-N inverters.

Provides the permission-to-operate powerline communication (PLC) signal when paired with Sol-Ark O900-80V or any other SunSpec RSD Certified module-level power electronic devices to provide rapid shutdown system compliance as per 2017 & 2020 NEC 690.12 specifications. This transmitter can be installed in can be installed in existing Sol-Ark 15K previously commissioned.

No need to install cores for Power Line Communication (PLC), TX-15K-A has the transmitter built into the MPPT board of the Sol-Ark 15K.

Technical Specifications:

• Model: TX 15K-A
• Product Type: PLC RSS / Rapid Shutdown Transmitter
• Compatible Inverter: Sol-Ark 15K-2P-N
• Communication: Power Line Communication (PLC)
• PV String Inputs: 6
• Maximum PV Voltage: 500 VDC
• Maximum RSD Devices/String: 30
• On-board Supply: 48 VDC / 0.5 A
• Maximum Power Consumption: 12 W
• Dimensions: 110 × 244 mm
• Weight: 0.79lbs
