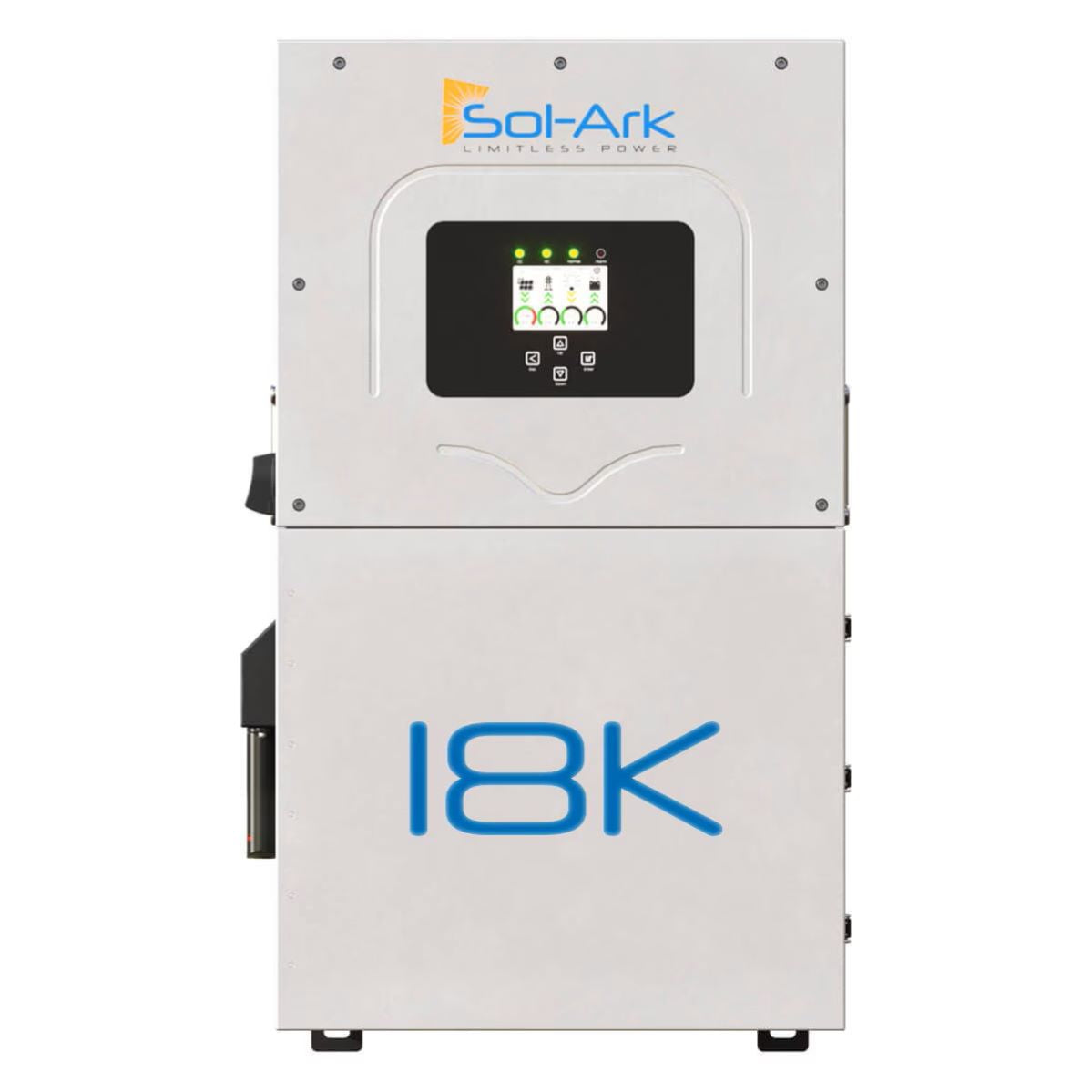

Sol-Ark Hybrid inverter, 18K 120/240/208V-3P, 10 Year Standard Warranty, NEMA-3R

Sol-Ark Hybrid inverter, 18K 120/240/208V-3P, 10 Year Standard Warranty, NEMA-3R

Rising electricity costs, greater grid instability, and growing consumer demand for resilient home energy solutions are reshaping how homeowners evaluate solar energy systems. The Sol-Ark® 18K-2P-N hybrid inverter stands at the forefront of this market transformation.

Engineered for the most grueling off-grid or back-up needs, the 18K-2P delivers up to 18kW of continuous power directly from battery storage to support large loads and 36kw of surge power for 10s to ensure HVAC units and motors have no problem starting in a grid-down scenario. The 18k 2P-N supports more PV than any other residential inverter (over 40kW when utilizing AC coupled functionality).

Technical Specifications:

• Model: SA-18K-2P-N
• Product type: Residential hybrid inverter
• Continuous output: 18,000 W
• Surge output: 36,000 W / 10 sec
• Maximum supported PV: 32,400 W
• Maximum usable PV: 28,800 W
• MPPT: 3
• PV strings: 2 per MPPT / 6 total
• Maximum efficiency: 97.6%
• Battery capacity range: 50–9,900 Ah
• Battery current: 350 A continuous
• Enclosure: IP65 / NEMA 3R
• Dimensions (H × W × D): 863 × 464 × 282 mm
• Weight: 62.4 kg / 137 lb
