SOL-ARK 8K 120/240V 4+ BATTERY SYSTEM. UP TO 1100

SOL-ARK 8K 120/240V 4+ BATTERY SYSTEM. UP TO 1100

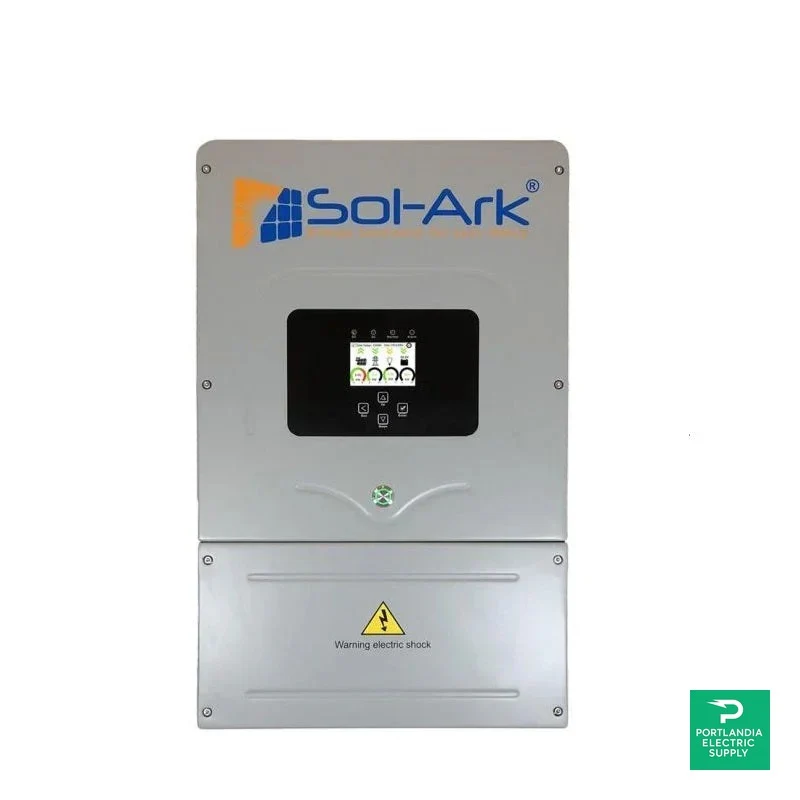

 The Sol-Ark SA-8K-5-YEAR is an 8kW hybrid solar inverter designed to convert DC electricity from solar panels and batteries into AC electricity for residential or small commercial use. It supports grid-connected and off-grid applications, manages battery charging and discharging, and can provide backup power during grid outages when configured appropriately.

Technical Specifications:

• Brand: Sol-Ark
• Model: SA-8K-5-YEAR
•  Rated Power: 8,000 W (8 kW)
• Battery Voltage: 48 V DC nominal
• AC Output Voltage: 120/240 V split-phase
•  Frequency: 50/60 Hz
• Maximum PV Input Voltage: 500 V DC
• MPPT Voltage Range: 150–425 V DC
• Maximum Solar Array Power: 11,000 W
•  MPPT Trackers: 2
• Maximum AC Output Current: 33.3 A at 240 V
• Maximum Efficiency: Up to 97.5%
• Battery Compatibility: Lead-acid and lithium-ion
• Communication: Wi-Fi, LAN, CAN bus and RS485
• Protection Rating: NEMA 3R
•  Dimensions (H × W × D): Approximately 30 × 18.3 × 10 inches
• Weight: Approximately 78 lb (35.4 kg)
