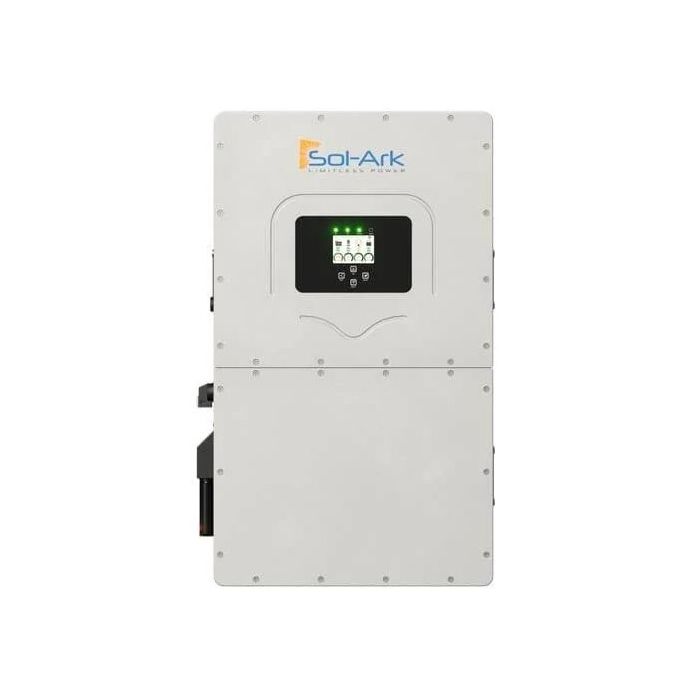

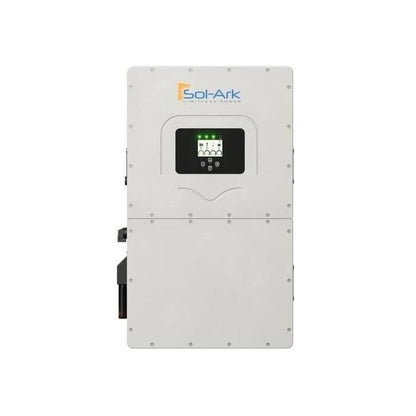

Sol-Ark SA-60K-3P 480V Pre-wired Hybrid Inverter

Sol-Ark 60K-3P-480V Pre-wired Hybrid Inverter System

The SA-60K-3P is a 60 kW three-phase commercial hybrid inverter designed for larger solar-plus-storage systems. It combines PV generation, high-voltage battery storage, grid power, and backup/generator capability. The current Sol-Ark documentation identifies the 60K-3P platform as the 60K-3P-480V, with native 277/480 V three-phase output.

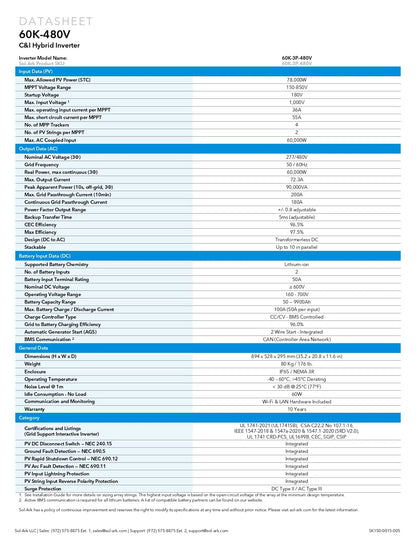

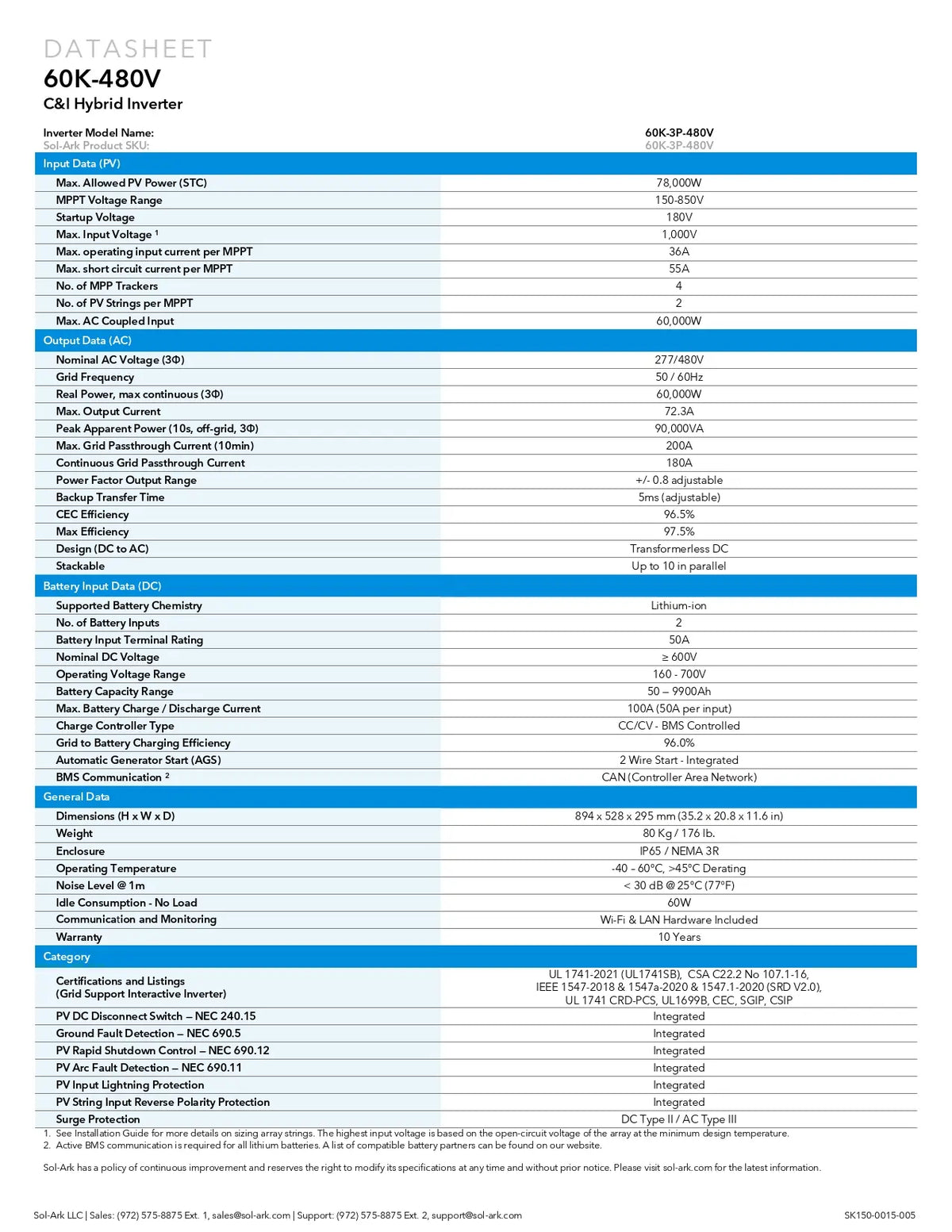

Technical Specifications:

• Model: SA-60K-3P / 60K-3P-480V
• Type: Commercial 3-phase hybrid inverter
• Continuous AC Power: 60,000 W
• Peak Apparent Power: 90,000 VA / 10 sec
• Maximum PV Power: 78,000 W STC
• Maximum PV Power to AC/Battery: 60,000 W
• MPPTs: 4
• PV Strings: 2 per MPPT / 8 total
• Maximum PV Operating Current: 36 A per MPPT
• Maximum PV Short-Circuit Current: 55 A per MPPT
• Maximum AC Output Current: 72.3 A
• Maximum AC-Coupled Input: 60,000 W
• Battery Inputs: 2
• Battery Chemistry: Lithium-ion
• Maximum Battery Charge/Discharge: 100 A total / 50 A per input
• Maximum Efficiency: 97.5%

• Enclosure: IP65 / NEMA 3R
• Dimensions: 894 × 528 × 295 mm (35.2 × 20.8 × 11.6 in)
• Weight: 176 lb / 80 kg
