Sol-Ark 5K-1P-N Pre-Wired Hybrid Inverter System is an all-in-one system that includes an inverter, charger controller, and a display with remote monitoring.

Sol-Ark 5K-1P-N Pre-Wired Hybrid Inverter System is an all-in-one system that includes an inverter, charger controller, and a display with remote monitoring.

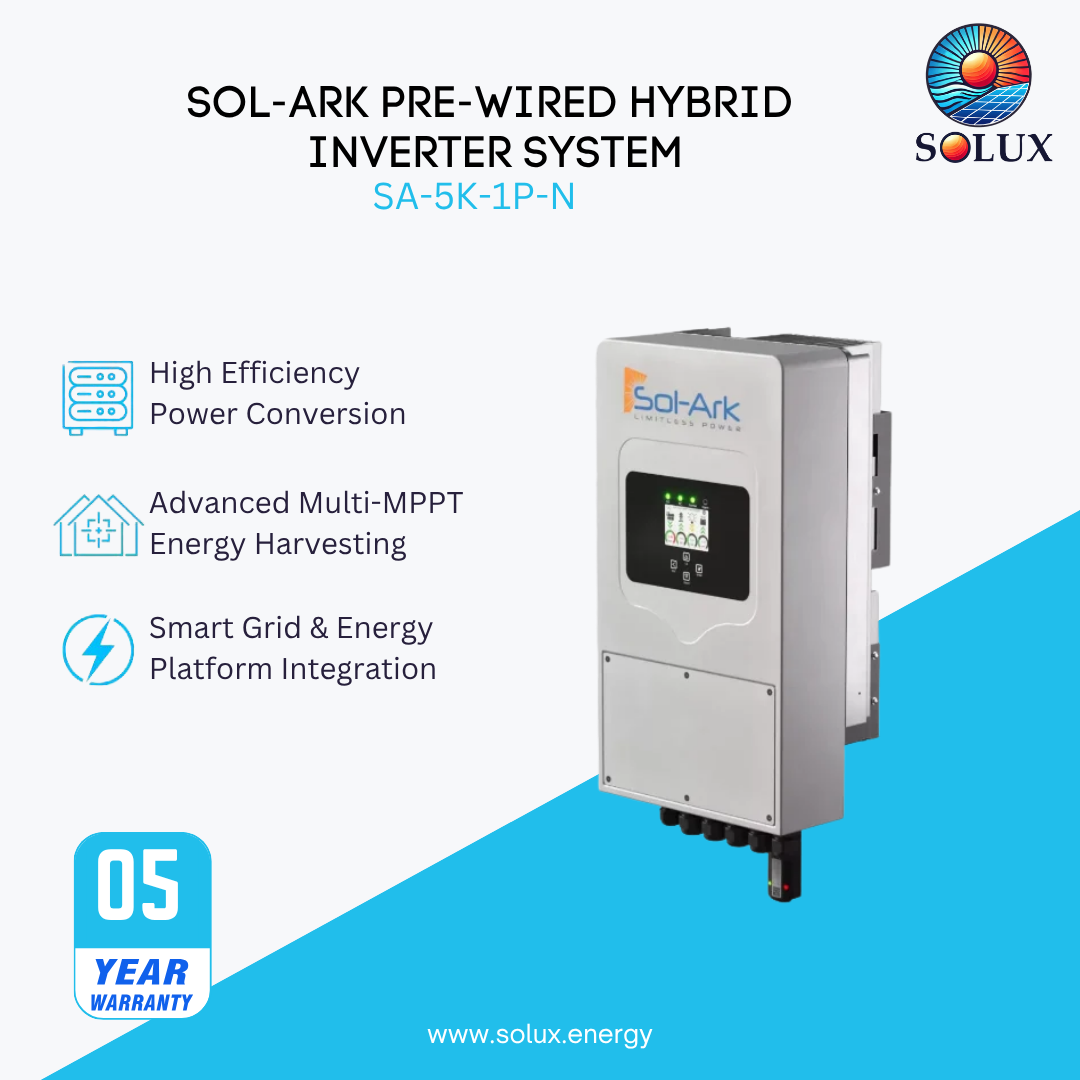

The Sol-Ark SA-5K-1P-N is an all-in-one hybrid solar inverter designed to manage power from solar panels, batteries, the utility grid, and a generator. It supports grid-tied, off-grid, and battery-backup applications.

Technical Specifications:

• Brand: Sol-Ark
• Model: SA-5K-1P-N
• Rated Output Power: 4,800 W (4.8 kW)
• Battery Voltage: 48 V DC nominal
• Battery Operating Voltage: 40–60 V DC
• AC Output Voltage: 120 V single-phase
• Frequency: 50/60 Hz
• Maximum PV Input Power: 10,400 W
• Maximum PV Input Voltage: 500 V DC
• MPPT Trackers: 2
• Maximum Efficiency: 97.6%
• Protection Rating: IP65 / NEMA 3R
• Operating Temperature: −40°C to +60°C, with derating above 45°C
• Dimensions (H × W × D): 600 × 330 × 237 mm
• Weight: Approximately 24 kg (53 lb)
