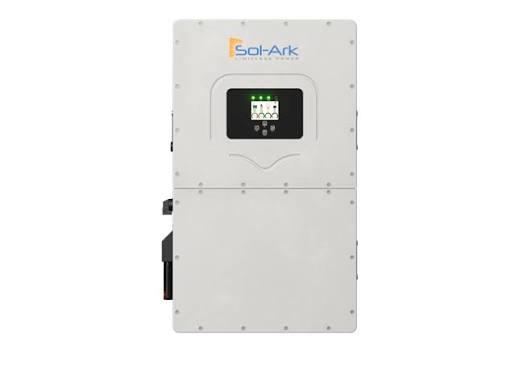

Sol-Ark 30K 3-Phase Output 208 / 240Vac Hybrid Inverter. High Voltage Battery (150-550V). Nema 3-R. 10 Year Standard Warranty.

Sol-Ark 30K 3-Phase Output 208 / 240Vac Hybrid Inverter. High Voltage Battery (150-550V). Nema 3-R. 10 Year Standard Warranty.

The 30K-3P-208V-N is a 30 kW three-phase high-voltage hybrid inverter designed primarily for light commercial and industrial solar-plus-storage systems. It provides native 120/208 V three-phase output and supports both DC-coupled and AC-coupled solar, high-voltage lithium battery storage, grid backup, and generator integration. Sol-Ark lists it specifically as a commercial hybrid inverter.

Technical Specifications:

• Model: 30K-3P-208V-N
• Product Type: Commercial 3-phase hybrid inverter
• Continuous AC Power: 30,000 W
• Maximum PV Power (STC): 39,000 W
• Maximum PV power delivered to battery/AC outputs: 30,000 W
• MPPT Quantity: 4
• PV Strings per MPPT: 2
• Maximum PV Operating Current: 36 A per MPPT
• CEC Efficiency: 96.5%
• Battery Inputs: 2
• Battery Input Rating: 50 A per input
• Enclosure: IP65 / NEMA 3R
• Dimensions: 894 × 528 × 295 mm
• Weight: 80 kg / 176 lb
