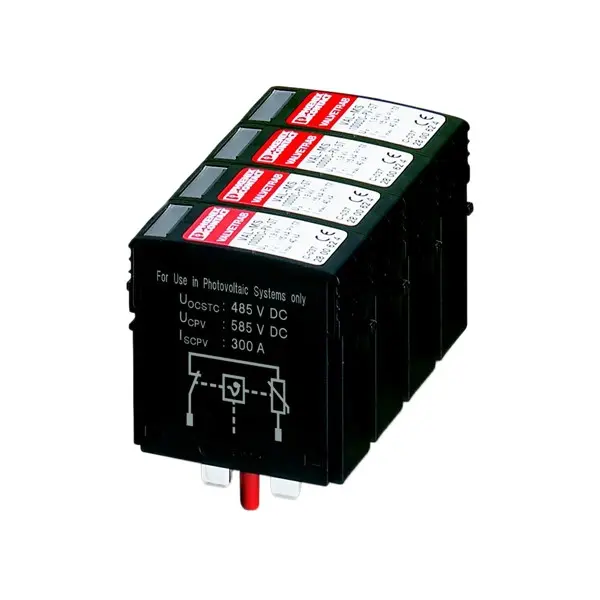

SMA Type II Surge Protection Device DCSPD KIT3-10
The DCSPD KIT3-10 is a DC Type II surge protection device (SPD) designed as an accessory for compatible SMA Sunny Tripower solar inverters. It protects the inverter's DC inputs from transient overvoltage/surge events, helping reduce the risk of damage caused by lightning-induced or switching surges. It is specified for the inverter's Input A and Input B.
-
Description
Specifications:
- Manufacturer Part Number: DCSPD KIT3-10
- Manufacturer: SMA
- SPD Type: Type II
Mechanical:
- Application: Photovoltaic / solar inverter DC protection
- Compatible inverter: SMA Sunny Tripower 20000TL / 25000TL
- Maximum inverter DC input voltage: 1,000 V DC
- SPD short-circuit rating: 2,000 A
- Nominal discharge current (8/20 µs): 15 kA
- Maximum discharge current (8/20 µs): 40 kA
- Standard referenced: IEC/EN 61643-11:2011.
-
Resources
Datasheet
✔️ Download Datasheet
Quick Installation Guide
No quick istallation guide file resource available. Email support@solux.energy for file request.
Warranty
No warranty file resource available. Email support@solux.energy for file request.
