SMA Hybrid PV+storage grid-tie inverter, backup ready, DC disconnect, UL1741SB, 120/240/208Vac, SunSpec RSD, AFCI, 4 MPPT, 200% DC/AC, SMA ShadeFix, Smart Connected, WLAN, Made in Germany

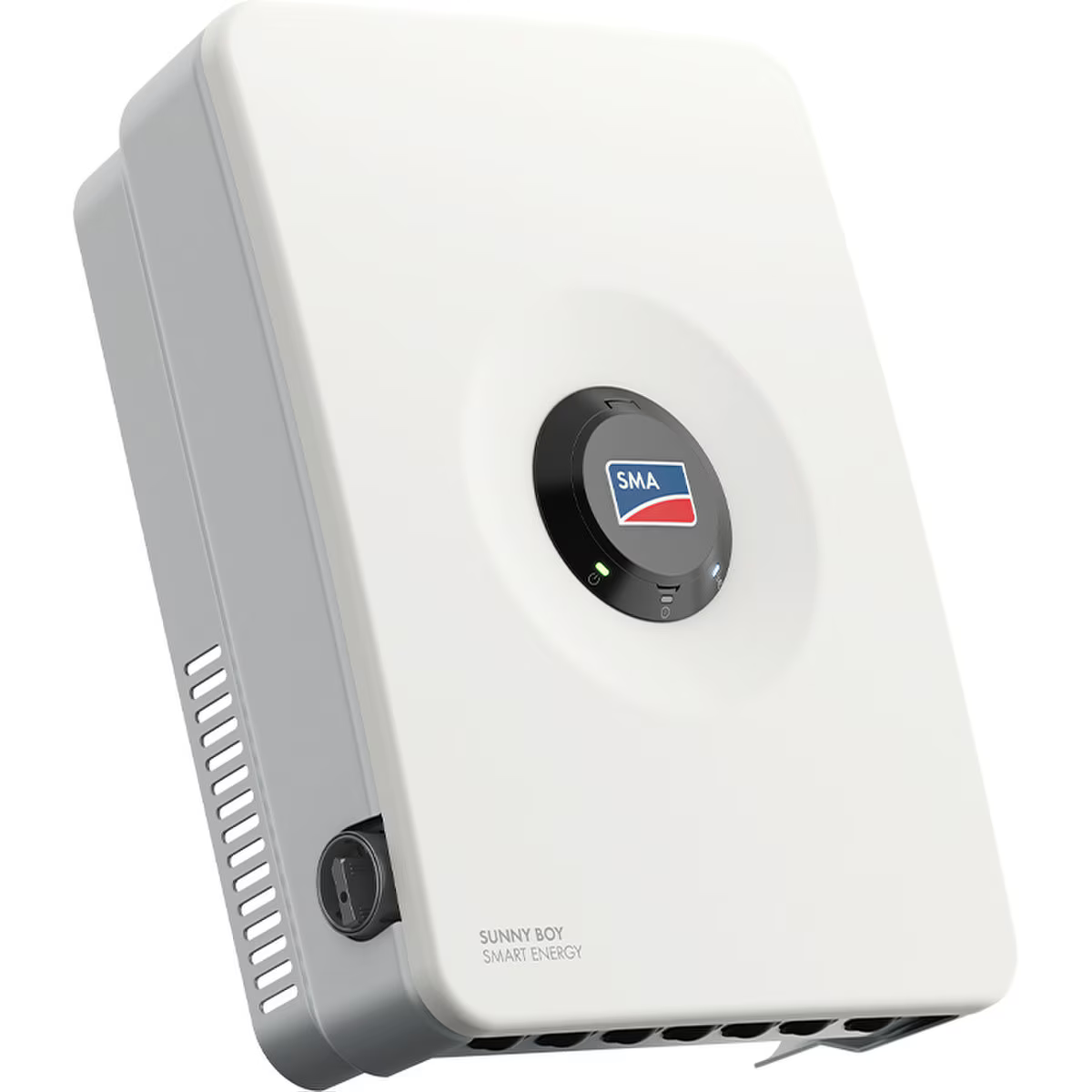

The SMA Sunny Boy Smart Energy 9.6-US is a single-phase hybrid inverter that combines PV solar and battery-inverter functions in one unit. It is designed for residential solar-plus-storage systems, managing energy from the PV array and connected battery while supporting grid-tied operation and backup configurations. The 9.6 kW model supports up to 200% DC oversizing and four MPPT inputs.
-
Description
Specifications:
- Model: SBSE9.6-US-50
- Rated AC Power: 9,600 W at 240 V / 60 Hz
- AC Power at 208 V: 8,320 W
- Maximum Apparent Power: 9,600 VA
- AC Voltage: 240 V or 208 V
- AC Voltage Range: 211–264 V / 183–229 V
- Grid Frequency: 60 Hz (55–66 Hz range)
- Maximum AC Output Current: 40 A
- Recommended Overcurrent Protection: 50 A
- Maximum PV Array Power: 19,200 Wp (200% DC oversizing)
- Maximum DC Voltage: 600 V
- MPPT Voltage Range: 168–480 V
- Number of MPPTs: 4 independent MPPT inputs
- Shipping Dimensions: 30 x 23 x 14 in
-
